940 A (940A, 940A/15)

Philips Electrical, Lamps, Industrial - Miniwatt; London

Daten
Forum
Bilder
Sammlungen

  • Jahr
  • 1935
  • Kategorie
  • Rundfunkempfänger (Radio - oder Tuner nach WW2)
  • Radiomuseum.org ID
  • 77329

Klicken Sie auf den Schaltplanausschnitt, um diesen kostenlos als Dokument anzufordern.

 Technische Daten

  • Anzahl Röhren
  • 3
  • Hauptprinzip
  • Geradeaus oder Audion mit Rückkopplung
  • Anzahl Kreise
  • 1 Kreis(e) AM
  • Wellenbereiche
  • Langwelle, Mittelwelle (LW+MW).
  • Betriebsart / Volt
  • Wechselstromspeisung / 108/250 Volt
  • Lautsprecher
  • Dynamischer LS, keine Erregerspule (permanentdynamisch) / Ø 17 cm = 6.7 inch
  • Material
  • Bakelit (Pressstoff)
  • von Radiomuseum.org
  • Modell: 940 A - Philips Electrical, Lamps,
  • Form
  • Tischgerät ohne Drucktasten, bis 35 cm Breite (Kleingerät, meist dekorativ. Nur für Netzbetrieb, doch Transportgriff möglich).
  • Abmessungen (BHT)
  • 315 x 245 x 175 mm / 12.4 x 9.6 x 6.9 inch
  • Bemerkung

  • Designed as a "Local Station Receiver". EE: We believe that the British 940A has been originally made with the tube line up of Mullard SP4 and Mullard PM24M and not Philips E446 and E443H but 1821 as rectifier (not G1064) as stated by other source. At least later British versions show 940 A/15 (940A/15) on the plate.

  • Nettogewicht
  • 7 kg / 15 lb 6.7 oz (15.419 lb)

 Sammlungen | Museen | Literatur

Sammlungen

Das Modell befindet sich in den Sammlungen folgender Mitglieder.

 Forum

Forumsbeiträge zum Modell: Philips Electrical,: 940 A

Threads: 3 | Posts: 14

Hallo everyone,

I've got one Philips 940A radio with some peculiar features. As first, it is in a wooden cabinet, what I have seen only by Czech 944A, but it has different speaker-grille at the front. Mine has the same as UK and Dutch bakelite cabinets. (by mistake, I have uploaded its photo at the Dutch model-page). Also, as far as I know, Czechs have used the Dutch chassis.

Further, it has UK chassis, but Philips tube-line: E446, E443H and 506.

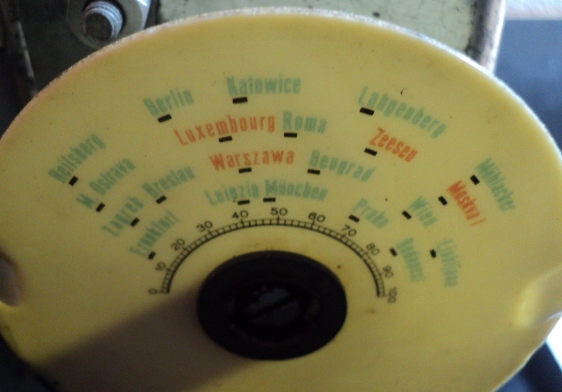

The most strange is the dial disk! Instead of wavelengths, it has the names of stations - green for MW and red for LW. According to those stations, it was probable made for east- and central European market.

All parts and the wiring are original, except that I had to resuff Philips "padestoel" electrolytes.

Has anyone seen such model, or can locate its manufacturer?

Thanks for help and best regards,

Dejan

Anlagen

Dejan Momirov, 10.May.19

Weitere Posts (9) zu diesem Thema.

The set 940A, in bakelite, was produced in Czechoslovakia under the name 944A.

http://www.radiomuseum.org/r/philips_944a_944_a.html



Viktor Cingel, 22.Jun.09

Weitere Posts (1) zu diesem Thema.

In a 940A/15 these valves are used: SP4-PM24M-1821

Aad Hoenderdos, 07.Aug.06
