Ruiseñor (Ruisenor) AL261HU

Ruiseñor AL261HU; Philips Argentina, (ID = 847949) Radio Ruiseñor AL261HU; Philips Argentina, (ID = 820265) Radio
Ruiseñor AL261HU; Philips Argentina, (ID = 801132) Radio Ruiseñor AL261HU; Philips Argentina, (ID = 814937) Radio
Ruiseñor AL261HU; Philips Argentina, (ID = 801133) Radio Ruiseñor AL261HU; Philips Argentina, (ID = 819713) Radio
Ruiseñor AL261HU; Philips Argentina, (ID = 820264) Radio Ruiseñor AL261HU; Philips Argentina, (ID = 847950) Radio
Use red slider bar for more.
Ruiseñor AL261HU; Philips Argentina, (ID = 847949) Radio
Philips Argentina,: Ruiseñor AL261HU [Radio] ID = 847949 933x753
Select picture or schematic to display from thumbnails on the right and click for download.
For model Ruiseñor (Ruisenor) AL261HU, Philips Argentina, FAPESA, Miniwatt tubes; Buenos Aires:

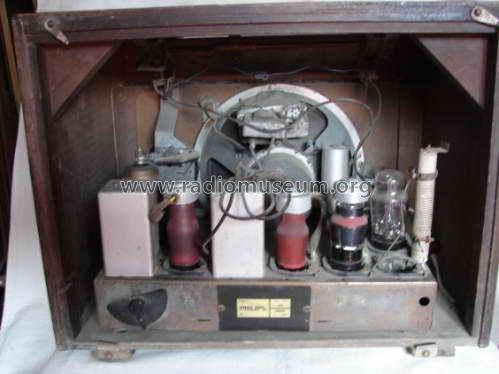

Restored Philips AL261HU from the collection of Jorge Mochkovsky

Country:  Argentina
Manufacturer / Brand:  Philips Argentina, FAPESA, Miniwatt tubes; Buenos Aires
Year: 1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: EK2 EF5 EBC3 EL2 CY1 C1
Main principle Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
Wave bands Broadcast and Short Wave (SW).
Details

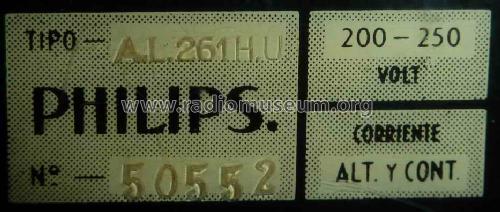

Power type and voltage AC/DC-set / 200-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Ruiseñor AL261HU - Philips Argentina, FAPESA,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 390 x 295 x 250 mm / 15.4 x 11.6 x 9.8 inch
Notes Philips Argentina AL261HU;
SW: 5.7...16.8 MHz. Uses European side contact base tubes.
Net weight (2.2 lb = 1 kg) 8 kg / 17 lb 9.9 oz (17.621 lb)

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
