Aladin D23GW

Aladin D23GW; Philips Radios - (ID = 5323) Radio
Aladin D23GW; Philips Radios - (ID = 302316) Radio Aladin D23GW; Philips Radios - (ID = 302317) Radio
Aladin D23GW; Philips Radios - (ID = 302319) Radio Aladin D23GW; Philips Radios - (ID = 302321) Radio
Aladin D23GW; Philips Radios - (ID = 302322) Radio
Use red slider bar for more.
Aladin D23GW; Philips Radios - (ID = 302316) Radio

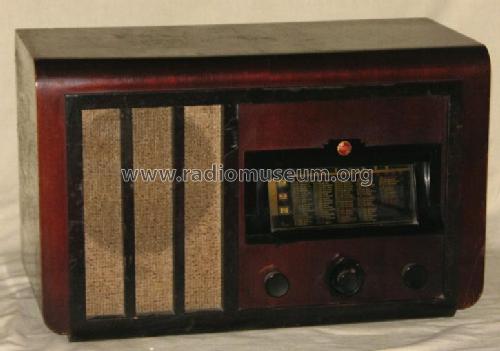

Philips Radios -: Aladin D23GW [Radio] ID = 302316 725x510
Select picture or schematic to display from thumbnails on the right and click for download.
For model Aladin D23GW, Philips Radios - Deutschland

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1936/1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: CF3 CF7 CL4 CY1 C1 or C2
Main principle TRF with regeneration
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 100-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Aladin D23GW - Philips Radios - Deutschland
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 540 x 345 x 285 mm / 21.3 x 13.6 x 11.2 inch
Notes C1 bei 150-220 V, C2 bei 100-150 V.
Net weight (2.2 lb = 1 kg) 13.6 kg / 29 lb 15.3 oz (29.956 lb)
Collectors' prices
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Schenk-Regelien
