L'Alfiere 3 B4I90A

L'Alfiere 3 B4I90A; Philips Italy; (ID = 196826) Radio

L'Alfiere 3 B4I90A; Philips Italy; (ID = 199072) Radio

L'Alfiere 3 B4I90A; Philips Italy; (ID = 199073) Radio

L'Alfiere 3 B4I90A; Philips Italy; (ID = 199074) Radio
L'Alfiere 3 B4I90A; Philips Italy; (ID = 2226019) Radio L'Alfiere 3 B4I90A; Philips Italy; (ID = 2226020) Radio
L'Alfiere 3 B4I90A; Philips Italy; (ID = 742999) Radio L'Alfiere 3 B4I90A; Philips Italy; (ID = 194695) Radio
L'Alfiere 3 B4I90A; Philips Italy; (ID = 194694) Radio L'Alfiere 3 B4I90A; Philips Italy; (ID = 194696) Radio
L'Alfiere 3 B4I90A; Philips Italy; (ID = 194693) Radio L'Alfiere 3 B4I90A; Philips Italy; (ID = 288701) Radio
L'Alfiere 3 B4I90A; Philips Italy; (ID = 1755378) Radio
Use red slider bar for more.
L'Alfiere 3 B4I90A; Philips Italy; (ID = 2226019) Radio
Philips Italy;: L'Alfiere 3 B4I90A [Radio] ID = 2226019 1400x1071

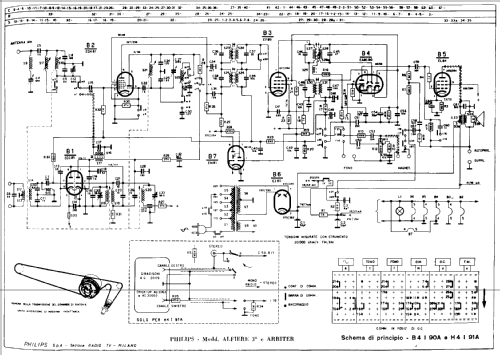

Select picture or schematic to display from thumbnails on the right and click for download.
For model L'Alfiere 3 B4I90A, Philips Italy; Milano (MI):
FOTO FRANCO ANTOLINI

Country:  Italy
Manufacturer / Brand:  Philips Italy; Milano (MI)
Year: 1960/1961 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF89 EABC80 EM81 EL84 EZ80
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 145; 160; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch
Power out
from Radiomuseum.org Model: L'Alfiere 3 B4I90A - Philips Italy; Milano MI
Material Moulded (Bakelite or Plastics)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 450 x 300 x 200 mm / 17.7 x 11.8 x 7.9 inch
Notes Comando sintonia: induttanza a permeabilita' variabile. Rivelazione FM: a rapporto. Frequenza intermedia FM: 10,7 MHz ;Altoparlante tipo AD3700X (5 ohm)
Collectors' prices
Source of data Guida Pratica Antique Radio III (2000)

Model page created by Marco Gilardetti. See "Data change" for further contributors.
