Alfiere 5 440BA
Use red slider bar for more.
Philips Italy;: Alfiere 5 440BA [Radio] ID = 2645355 1400x857
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1964 | Category: Broadcast Receiver - or past WW2 Tuner | ||||

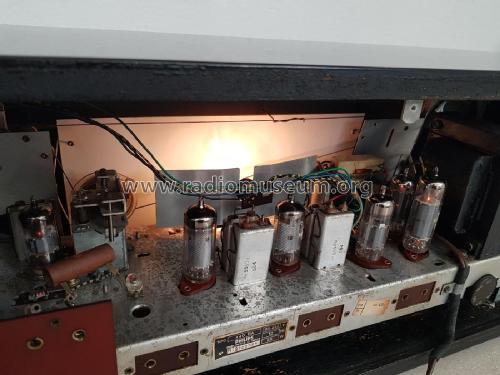

| Valves / Tubes | 7: ECC85 ECH81 EF89 EABC80 EM87 EL84 EZ80 |
|---|
| Main principle | Superheterodyne (common); ZF/IF 460/10700 kHz |
|---|---|
| Wave bands | Broadcast, Short Wave plus FM or UHF. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110; 127; 145; 160; 220 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical |
| Power out | |
| from Radiomuseum.org | Model: Alfiere 5 440BA - Philips Italy; Milano MI |
| Material | Wooden case |
| Shape | Tablemodel, low profile (big size). |
| Dimensions (WHD) | 575 x 240 x 210 mm / 22.6 x 9.4 x 8.3 inch |
| Net weight (2.2 lb = 1 kg) | 7 kg / 15 lb 6.7 oz (15.419 lb) |
| Source of data | Guida Pratica Antique Radio IV (2001) |
Model page created by Hernani Capela. See "Data change" for further contributors.
