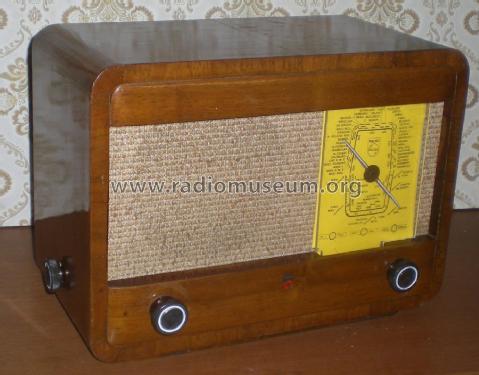

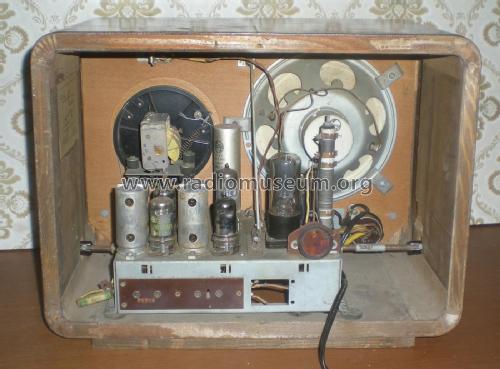

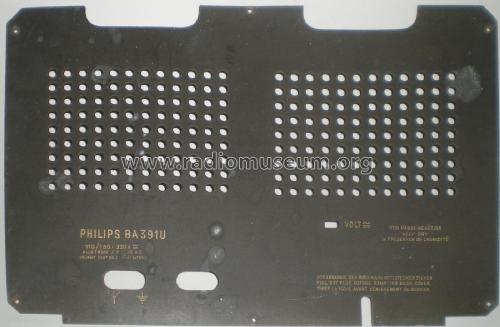

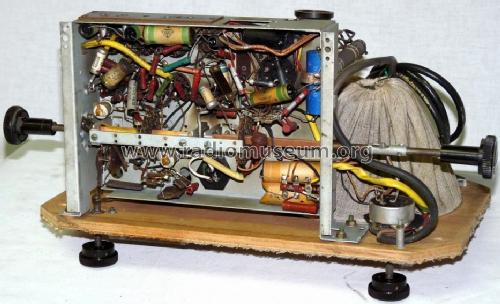

Andante BA391U

• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1949/1950

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 10106

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UCH42 UAF42 UAF42 UL41 UY1N

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110; 150; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch

• Power out
• 3.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Andante BA391U - Philips - Österreich

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 380 x 270 x 200 mm / 15 x 10.6 x 7.9 inch

• Notes
• Wellenbereiche: KW 16...52m; MW 190...590m; LW 1020...2000m. Tonschalter: dunkel-mittel-hell. Skalenlampe: 20V/0,1A. Sicherung: 300 mA. Eingang für Plattenspieler. Leistungsbedarf bei 220 Volt: 48 Watt. Parallelgerät zum Horny W359U und Zerdik Z359U.

• Net weight (2.2 lb = 1 kg)
• 5 kg / 11 lb 0.2 oz (11.013 lb)

• Price in first year of sale
• 1,040.00 S

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.
