Arbiter 4 441HA
Use red slider bar for more.
Philips Italy;: Arbiter 4 441HA [Radio] ID = 2214178 897x538
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1964 ? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 7: ECC85 ECH81 EF89 EABC80 EM87 EL84 EZ80 |
|---|
| Main principle | Superheterodyne (common); ZF/IF 460/10700 kHz |
|---|---|
| Tuned circuits | 6 AM circuit(s) 9 FM circuit(s) |
| Wave bands | Broadcast, Short Wave plus FM or UHF. |
| Details | Changer (Record changer) |
| Power type and voltage | Alternating Current supply (AC) / 220 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical |
| Power out | |
| from Radiomuseum.org | Model: Arbiter 4 441HA - Philips Italy; Milano MI |
| Material | Wooden case |
| Shape | Tablemodel with Push Buttons. |

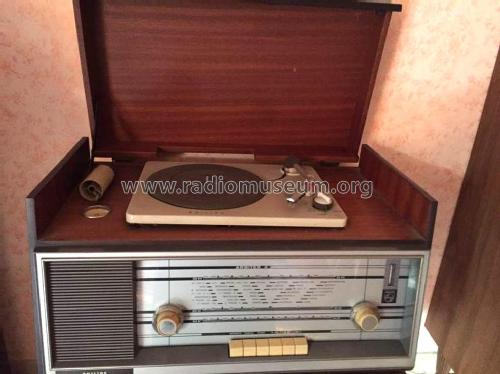

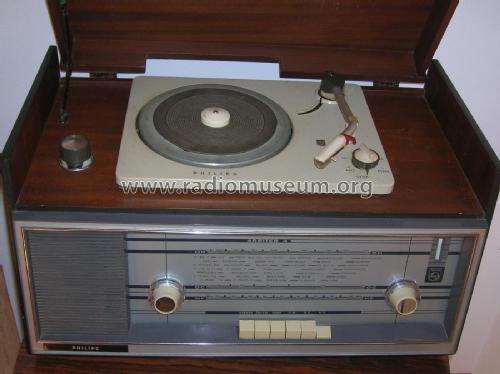

| Notes | Giradischi Philips AG1016. Radiofonografo Philips ARBITER 4 441HA con giradischi/cambiadischi (Philips), quattro velocità, controllo dei bassi a tastiera, controllo del tono continuo a potenziometro - Schema di riferimento è quello della Philips H4I21A/01 |
Model page created by Bernhard Nagel. See "Data change" for further contributors.
