Automatic 23 TSF 344A

Automatic 23 TSF 344A; Philips Finland - (ID = 1208005) Television Automatic 23 TSF 344A; Philips Finland - (ID = 1208006) Television
Automatic 23 TSF 344A; Philips Finland - (ID = 1208007) Television Automatic 23 TSF 344A; Philips Finland - (ID = 1208008) Television
Automatic 23 TSF 344A; Philips Finland - (ID = 1208009) Television Automatic 23 TSF 344A; Philips Finland - (ID = 1208010) Television
Automatic 23 TSF 344A; Philips Finland - (ID = 1208011) Television Automatic 23 TSF 344A; Philips Finland - (ID = 1208012) Television
Use red slider bar for more.
Automatic 23 TSF 344A; Philips Finland - (ID = 1208005) Television
Philips Finland -: Automatic 23 TSF 344A [Television] ID = 1208005 922x692
Select picture or schematic to display from thumbnails on the right and click for download.
For model Automatic 23 TSF 344A, Philips Finland - see also Fenno and TeRate

Country:  Finland
Manufacturer / Brand:  Philips Finland - see also Fenno and TeRate
Year: 1962 Category: Television Receiver (TV) or Monitor
Valves / Tubes 23: PC88 PC86 PCC189 PCF86 PCF80 EF183 ECH83 EF184 PCF80 EF184 PCL84 PCF80 PY88 PL36 ECC82 PCF80 PCF80 PCF80 PF86 PL84 PCL82 PCL82 AW59-90
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details

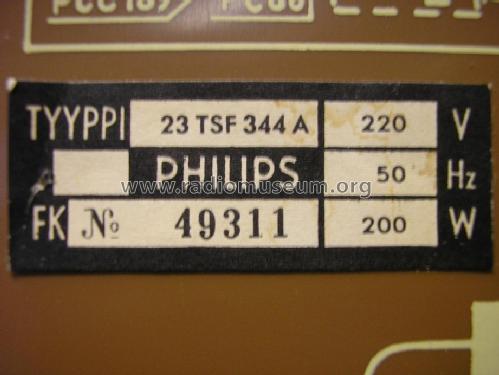

Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Automatic 23 TSF 344A - Philips Finland - see also
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 600 x 490 x 390 mm / 23.6 x 19.3 x 15.4 inch
Notes 59 cm b/w TV with CCIR B/G standard VHF & UHF tuner.

Model page created by Timo Rantasaari. See "Data change" for further contributors.
