B3SF72U

B3SF72U; Philips Finland - (ID = 322150) Radio B3SF72U; Philips Finland - (ID = 322147) Radio
B3SF72U; Philips Finland - (ID = 322148) Radio B3SF72U; Philips Finland - (ID = 322149) Radio
B3SF72U; Philips Finland - (ID = 322151) Radio B3SF72U; Philips Finland - (ID = 322152) Radio
B3SF72U; Philips Finland - (ID = 322153) Radio B3SF72U; Philips Finland - (ID = 941631) Radio
B3SF72U; Philips Finland - (ID = 941632) Radio B3SF72U; Philips Finland - (ID = 941633) Radio
Use red slider bar for more.

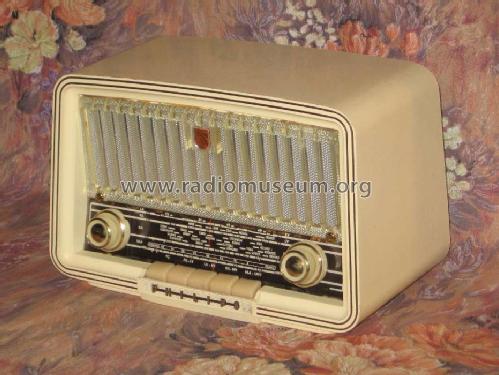

B3SF72U; Philips Finland - (ID = 322150) Radio
Philips Finland -: B3SF72U [Radio] ID = 322150 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model B3SF72U, Philips Finland - see also Fenno and TeRate

Country:  Finland
Manufacturer / Brand:  Philips Finland - see also Fenno and TeRate
Year: 1956 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: UCC85 UCH81 UF89 UABC80 UL41 UY85
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage AC/DC-set / 127; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: B3SF72U - Philips Finland - see also
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 285 x 181 x 166 mm / 11.2 x 7.1 x 6.5 inch
Notes These Philips and Philetta models were known in Finland by nickname ULA-Matti.
Net weight (2.2 lb = 1 kg) 2.9 kg / 6 lb 6.2 oz (6.388 lb)
Source of data - - Data from my own collection

Model page created by Jari Aalto. See "Data change" for further contributors.
