B4CA67A

B4CA67A; Philips; Calcutta (ID = 2020776) Radio

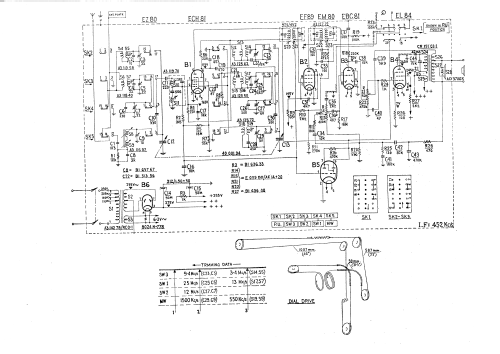

B4CA67A; Philips; Calcutta (ID = 2020777) Radio
B4CA67A; Philips; Calcutta (ID = 2302987) Radio B4CA67A; Philips; Calcutta (ID = 2020774) Radio
Use red slider bar for more.
B4CA67A; Philips; Calcutta (ID = 2302987) Radio
Philips; Calcutta: B4CA67A [Radio] ID = 2302987 1083x780
Select picture or schematic to display from thumbnails on the right and click for download.
For model B4CA67A, Philips; Calcutta

Country:  India
Manufacturer / Brand:  Philips; Calcutta
Year: 1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH81 EF89 EBC81 EL84 EM80 EZ80
Main principle Superheterodyne (common); ZF/IF 452 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 180; 205; 230 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: B4CA67A - Philips; Calcutta
Material Moulded (Bakelite or Plastics)
Shape Tablemodel with Push Buttons.
Notes

Speaker type AD3700X (Z = 5 ohms).

Wave bands:
MW: 185 - 580 m
SW1: 11.4 - 23.0 m
SW2: 24.8 - 32.0 m
SW3: 30.0 - 93.75 m

Power consumption: 55 W.

Mentioned in -- Original-techn. papers.

Model page created by Robert Kooijman. See "Data change" for further contributors.
