• Country
• Switzerland

• Manufacturer / Brand
• Philips - Schweiz

• Year
• 1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 86901

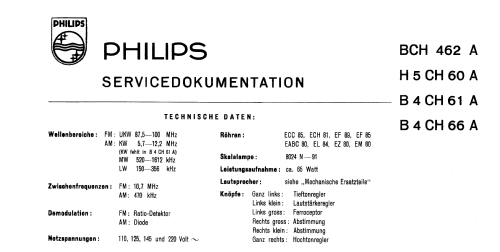

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• ECC85 ECH81 EF89 EF85 EM80 EABC80 EL84 EZ80

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110, 127, 145, 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: B4CH66A - Philips - Schweiz

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 560 x 375 x 240 mm / 22 x 14.8 x 9.4 inch

• Source of data
• - - Data from my own collection / Radiokatalog Band 2, Ernst Erb

• Author
• Model page created by Walter Haring. See "Data change" for further contributors.
