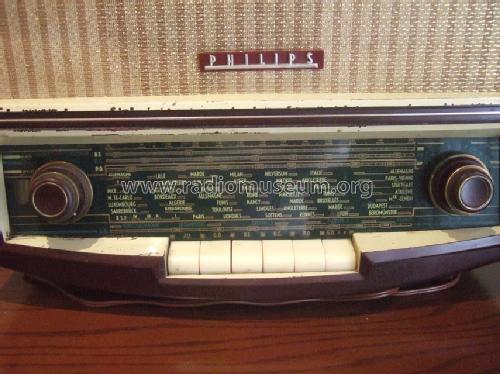

B4F61A /01; Philips France; (ID = 1407320) Radio B4F61A /01; Philips France; (ID = 1407321) Radio
B4F61A /01; Philips France; (ID = 1407323) Radio
Use red slider bar for more.
B4F61A /01; Philips France; (ID = 1407308) Radio
Philips France;: B4F61A /01 [Radio] ID = 1407308 855x641
Select picture or schematic to display from thumbnails on the right and click for download.
For model B4F61A /01, Philips France; Paris

Country:  France
Manufacturer / Brand:  Philips France; Paris
Year: 1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH81 EBF80 EBC81 EL84 EM80 EZ80
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 130; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch
Power out
from Radiomuseum.org Model: B4F61A /01 - Philips France; Paris
Material Bakelite case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 430 x 305 x 220 mm / 16.9 x 12 x 8.7 inch
Notes

2 OC dont une bande étalée.
Variante decor du B4F61A

Net weight (2.2 lb = 1 kg) 7 kg / 15 lb 6.7 oz (15.419 lb)
Source of data -- Original-techn. papers.
Mentioned in Le grand livre de la TSF (Doctsf Ref 26623)

Model page created by Diego Fernandez-Fernandez. See "Data change" for further contributors.
