B4F61A - BF461A

B4F61A - BF461A; Philips France; (ID = 2127900) Radio
B4F61A - BF461A; Philips France; (ID = 1407459) Radio B4F61A - BF461A; Philips France; (ID = 1852082) Radio
B4F61A - BF461A; Philips France; (ID = 1852083) Radio B4F61A - BF461A; Philips France; (ID = 1852084) Radio
B4F61A - BF461A; Philips France; (ID = 1852085) Radio B4F61A - BF461A; Philips France; (ID = 1852086) Radio
B4F61A - BF461A; Philips France; (ID = 2127901) Radio
Use red slider bar for more.
B4F61A - BF461A; Philips France; (ID = 1407459) Radio
Philips France;: B4F61A - BF461A [Radio] ID = 1407459 700x508
Select picture or schematic to display from thumbnails on the right and click for download.
For model B4F61A - BF461A, Philips France; Paris:
Source: Philips documents

Country:  France
Manufacturer / Brand:  Philips France; Paris
Year: 1956/1957 perfect model Category: Broadcast Receiver - or past WW2 Tuner

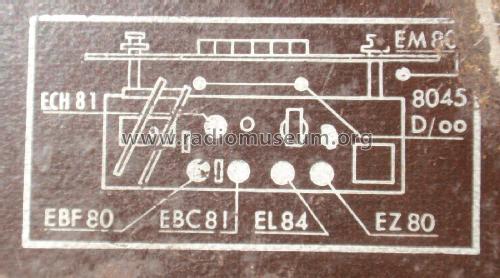

Valves / Tubes 6: ECH81 EBF80 EBC81 EL84 EM80 EZ80
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 130; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch
Power out
from Radiomuseum.org Model: B4F61A - BF461A - Philips France; Paris
Material Bakelite case

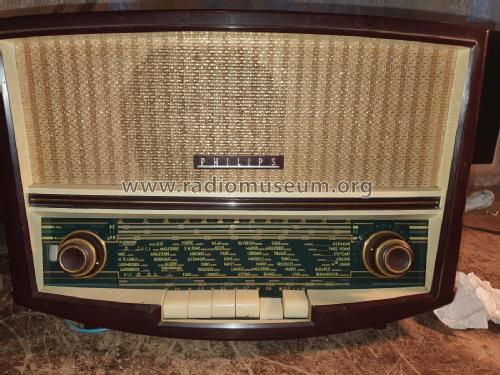

Shape Tablemodel with Push Buttons.
Dimensions (WHD) 420 x 285 x 200 mm / 16.5 x 11.2 x 7.9 inch
Notes

4 gammes d'ondes : BE (bande étalée) de 47 à 50.5 m, OC de 18 à 51 m, PO de 185 à 572 m, et GO de 1100 à 1950 m. Cadre Ferroxcube orientable et blindé, plaque antenne OC. Clavier 6 touches.

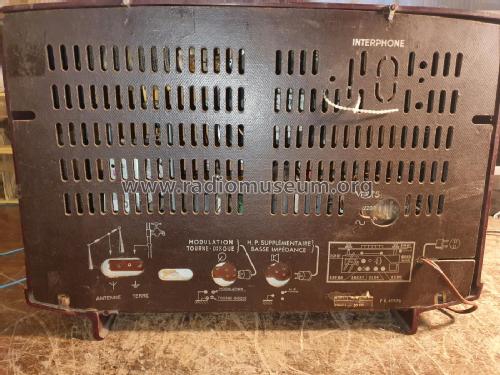

L'appareil est prevu pour adaptateur gamme chalutier FD 000 83, pour le réception de 80 à 200 m. Emplacement réservé sur le dos pour Interphone AF7800.

Coffret bakélite bordeaux.

Le type BF461A est seulement mentionné dans les publicités; réellement le modèle est désigné B4F61A.

Net weight (2.2 lb = 1 kg) 7.4 kg / 16 lb 4.8 oz (16.3 lb)
Price in first year of sale 33'500.00 FRF
Mentioned in -- Original-techn. papers.
Literature/Schematics (1) -- Original prospect or advert

Model page created by Karsten Hauger. See "Data change" for further contributors.
