• Country
• Indonesia

• Manufacturer / Brand
• Philips Ralin Indonesia

• Year
• 1958 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 282102

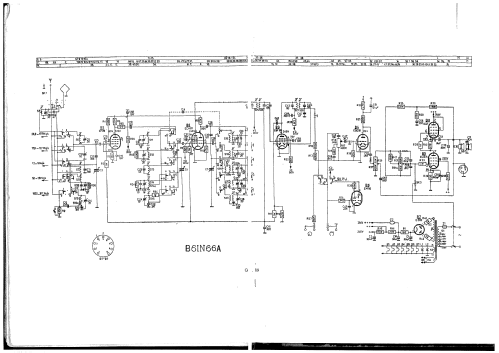

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• EF89 ECH81 EBF80 EBC81 EM80 EL84 UL41 EZ80

• Main principle
• Superhet with RF-stage; ZF/IF 452 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 90; 110; 125; 180; 200; 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: B6IN66A - Philips Ralin Indonesia

• Shape
• Tablemodel with Push Buttons.

• Notes

• BC: 517...1622 kHz
  SW 1: 17.7...26.2 MHz
  SW 2: 11.7...17.9 MHz
  SW 3: 5...12 MHz
  SW 4: 1.6...5.1 MHz

• Author
• Model page created by Maurice Hamm. See "Data change" for further contributors.
