B4X12A (B4X12A /89)
Philips; Eindhoven (tubes international!); Miniwatt
- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1961/1962
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 29689

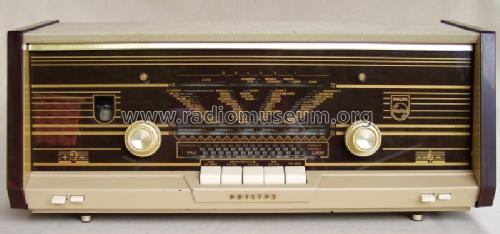

NL_Philips_B4X12A
NL_Philips_B4X12A_rear panel
Foto de Francisco Martins.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 452/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 145; 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: B4X12A - Philips; Eindhoven tubes
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 550 x 230 x 210 mm / 21.7 x 9.1 x 8.3 inch
- Notes
-
Seitenwände Plastik, Gehäuse Holz mit Überzug
Siehe auch das belgische Modell B4X12A (mit Ausführungen /01 und /54) und das schwedische Modell B4S12A.
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Iven Müller. See "Data change" for further contributors.
