For model B5CA97A, Philips; Calcutta

Country:  India
Manufacturer / Brand:  Philips; Calcutta
Year: 1962 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECH81 EF89 EBC81 EL86 EM84 EL84 EZ80
Main principle Superheterodyne (common); ZF/IF 452 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 180; 205; 230 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: B5CA97A - Philips; Calcutta
Material Moulded (Bakelite or Plastics)
Shape Tablemodel with Push Buttons.
Notes

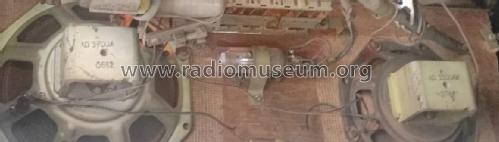

Push-pull output stage with EL86 and EL84 combo, using 2x 800 ohms speakers, types AD3700A and AD3500AM.

Wave bands:
MW: 185 - 580 m
SW1: 24.8 - 32.0 m
SW2: 11.4 - 23.0 m
SW3: 30.0 - 93.7 m

Power consumption: 55 W.

Mentioned in -- Original-techn. papers.

Model page created by Robert Kooijman. See "Data change" for further contributors.
