B5S12A /80 /81; Philips, Svenska AB, (ID = 2016753) Radio

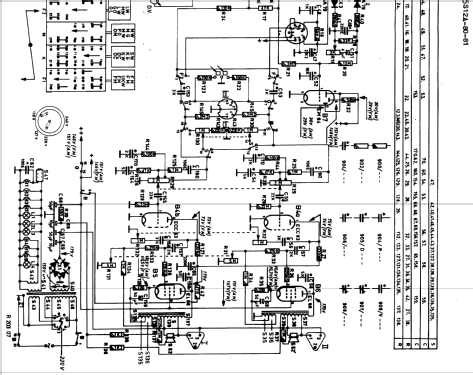

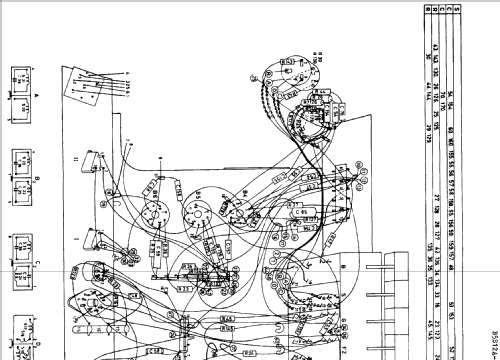

Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Sweden
Manufacturer / Brand:  Philips, Svenska AB, Stockholm
Year: 1961 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EBF89 ECC83 EM84 EL86 EL86
Semiconductors (the count is only for transistors) SR155B120 OA79 OA79
Main principle Super-Heterodyne (Super in general); ZF/IF 468/10850 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker 2 Loudspeakers / Ø 14 cm = 5.5 inch
Power out 3 W (unknown quality)
from Radiomuseum.org Model: B5S12A /80 /81 - Philips, Svenska AB, Stockholm
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 630 x 260 x 260 mm / 24.8 x 10.2 x 10.2 inch
Notes

Wave ranges:

  • LW: 150 - 400 kHz
  • MW: 526 - 1620 kHz
  • SW: 5.76 - 15.8 MHz
  • FM: 87.5 - 100 MHz
Collectors' prices
Source of data -- Original-techn. papers.

Model page created by Maurice Hamm. See "Data change" for further contributors.
