B5SF11A Ch= SF3

B5SF11A Ch= SF3; Philips Finland - (ID = 2398607) Radio

B5SF11A Ch= SF3; Philips Finland - (ID = 2398608) Radio

B5SF11A Ch= SF3; Philips Finland - (ID = 2398609) Radio

B5SF11A Ch= SF3; Philips Finland - (ID = 2398610) Radio

B5SF11A Ch= SF3; Philips Finland - (ID = 2398611) Radio

B5SF11A Ch= SF3; Philips Finland - (ID = 2398612) Radio

B5SF11A Ch= SF3; Philips Finland - (ID = 2398613) Radio
Use red slider bar for more.

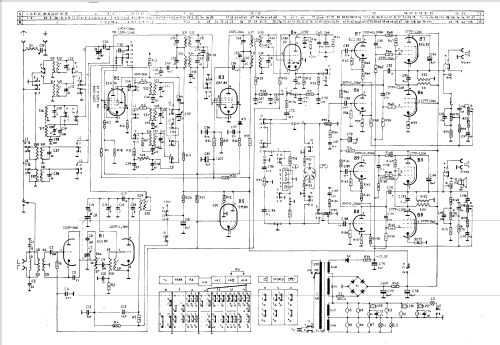

B5SF11A Ch= SF3; Philips Finland - (ID = 2398607) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Finland
Manufacturer / Brand:  Philips Finland - see also Fenno and TeRate
Year: 1961 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: ECC85 ECH81 EBF89 EABC80 EM80 ECL82 ECL82 ECL82 ECL82
Semiconductors (the count is only for transistors) B155C120 OA79 OA79
Main principle Superheterodyne (common); ZF/IF 468/10700 kHz
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220; 245 Volt
Loudspeaker 2 Loudspeakers / Ø 18 cm = 7.1 inch
Power out
from Radiomuseum.org Model: B5SF11A Ch= SF3 - Philips Finland - see also
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 700 x 270 x 300 mm / 27.6 x 10.6 x 11.8 inch

Model page created by Timo Rantasaari. See "Data change" for further contributors.



All listed radios etc. from Philips Finland - see also Fenno and TeRate
Here you find 159 models, 149 with images and 38 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
