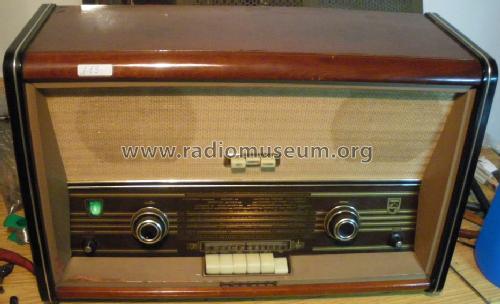

For model B6E83A, Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes; Madrid, Barcelona

Country:  Spain
Manufacturer / Brand:  Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes; Madrid, Barcelona
Year: 1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: ECC85 ECH81 EF93 EABC80 EM80 EBC90 HL94 HL94 EZ80
Main principle Super-Heterodyne (Super in general); ZF/IF 470/10700 kHz; 3 AF stage(s)
Tuned circuits 6 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast, 2 Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 150; 220 Volt

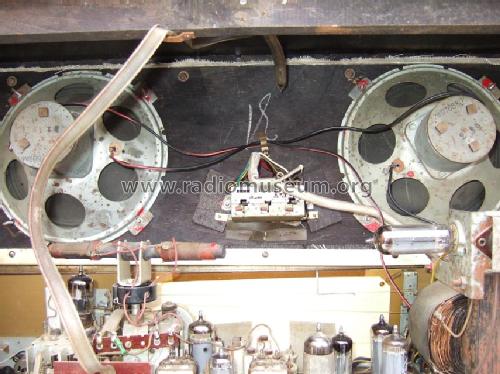

Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: B6E83A - Philips Ibérica, COPRESA,
Material Wooden case

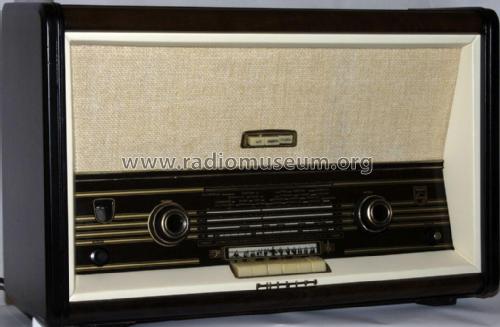

Shape Tablemodel with Push Buttons.
Dimensions (WHD) 600 x 385 x 230 mm / 23.6 x 15.2 x 9.1 inch
Notes

Philips B6E83A has a transformerless push pull audio amplifier.

 AM: 185 - 580 m.
OC1: 59 - 187 m.
OC2: 16,7 - 52,2 m.

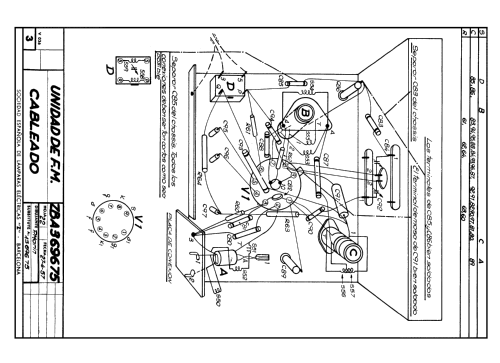

FM: 87,5 - 100 MHz utilizando módulo FM tipo ZB A3 696 75

Price in first year of sale 7'898.75 Pesetas

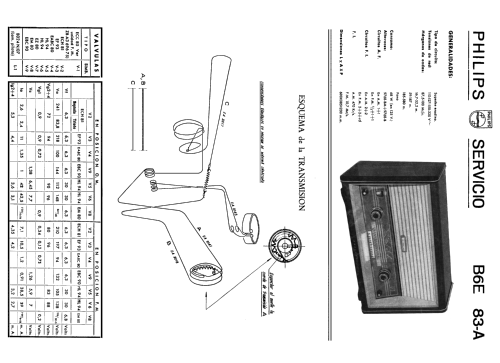

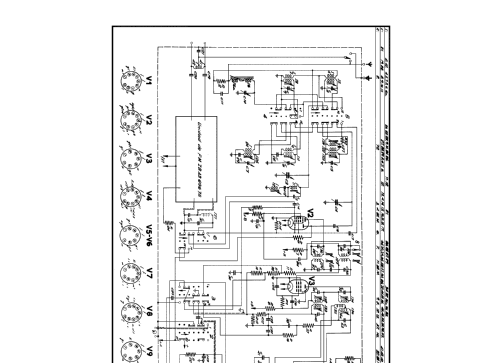

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
