B6X12A

B6X12A; Philips; Eindhoven (ID = 47606) Radio

B6X12A; Philips; Eindhoven (ID = 47607) Radio

B6X12A; Philips; Eindhoven (ID = 123382) Radio

B6X12A; Philips; Eindhoven (ID = 123383) Radio
B6X12A; Philips; Eindhoven (ID = 156287) Radio B6X12A; Philips; Eindhoven (ID = 156289) Radio
B6X12A; Philips; Eindhoven (ID = 156288) Radio B6X12A; Philips; Eindhoven (ID = 33085) Radio
B6X12A; Philips; Eindhoven (ID = 156290) Radio B6X12A; Philips; Eindhoven (ID = 725919) Radio
B6X12A; Philips; Eindhoven (ID = 1289874) Radio B6X12A; Philips; Eindhoven (ID = 1289875) Radio
Use red slider bar for more.

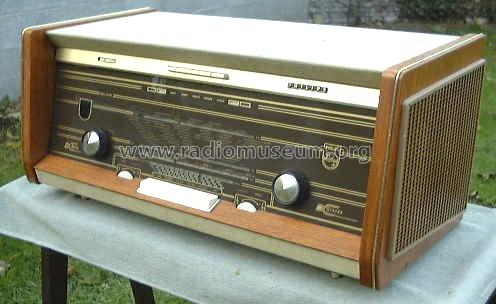

B6X12A; Philips; Eindhoven (ID = 156287) Radio
Philips; Eindhoven: B6X12A [Radio] ID = 156287 496x304
Select picture or schematic to display from thumbnails on the right and click for download.
For model B6X12A, Philips; Eindhoven (tubes international!); Miniwatt:
aus ebay, mit Erlaubnis des Verkäufers em85

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1961/1962 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: ECC85 ECH81 EF89 EBF89 EM80 EAA91 ECC83 EL84 EL84 EZ81
Main principle Superheterodyne (common); ZF/IF 452/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-245 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: B6X12A - Philips; Eindhoven tubes
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 600 x 289 x 258 mm / 23.6 x 11.4 x 10.2 inch
Notes Lautsprecher 800 Ohm über Trafo; keine eisenlose Endstufe!
Net weight (2.2 lb = 1 kg) 11.8 kg / 25 lb 15.9 oz (25.991 lb)
Literature/Schematics (1) -- Schematic

Model page created by Iven Müller. See "Data change" for further contributors.
