BCA405A

BCA405A; Philips; Calcutta (ID = 2536213) Radio BCA405A; Philips; Calcutta (ID = 2540107) Radio
BCA405A; Philips; Calcutta (ID = 2536214) Radio BCA405A; Philips; Calcutta (ID = 2536219) Radio
BCA405A; Philips; Calcutta (ID = 2536218) Radio BCA405A; Philips; Calcutta (ID = 2536215) Radio

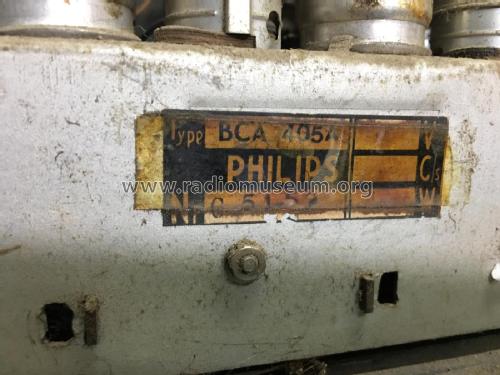

BCA405A; Philips; Calcutta (ID = 2536216) Radio BCA405A; Philips; Calcutta (ID = 2536217) Radio
Use red slider bar for more.

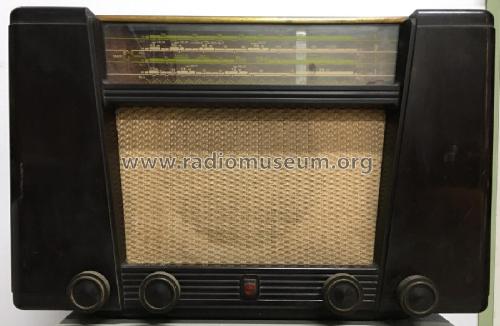

BCA405A; Philips; Calcutta (ID = 2536213) Radio
Philips; Calcutta: BCA405A [Radio] ID = 2536213 1400x915
Select picture or schematic to display from thumbnails on the right and click for download.
For model BCA405A, Philips; Calcutta

Country:  India
Manufacturer / Brand:  Philips; Calcutta
Year: 1952 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH42 EAF42 EBC41 EL41 AZ41
Main principle Superheterodyne (common); ZF/IF 452 kHz
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 90; 110; 125; 145; 200; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: BCA405A - Philips; Calcutta
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 455 x 300 x 205 mm / 17.9 x 11.8 x 8.1 inch
Notes

See for schematic Philips model BX405A.

Net weight (2.2 lb = 1 kg) 8.5 kg / 18 lb 11.6 oz (18.722 lb)

Model page created by Gidi Verheijen. See "Data change" for further contributors.
