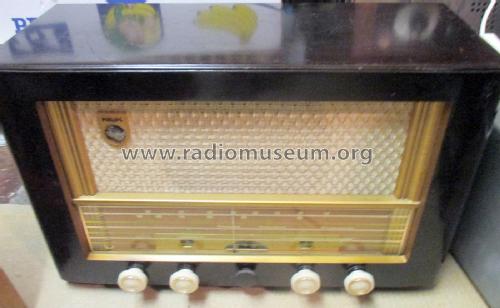

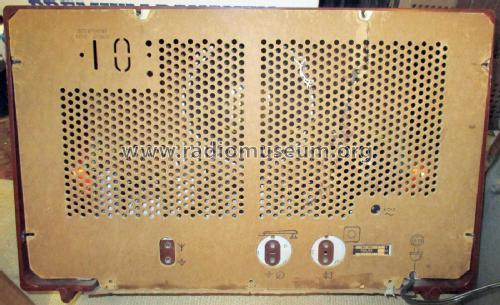

BCA628A; Philips; Calcutta (ID = 2035884) Radio BCA628A; Philips; Calcutta (ID = 2035887) Radio
BCA628A; Philips; Calcutta (ID = 2035870) Radio BCA628A; Philips; Calcutta (ID = 2035886) Radio
BCA628A; Philips; Calcutta (ID = 2035888) Radio
Use red slider bar for more.
BCA628A; Philips; Calcutta (ID = 2035884) Radio
Philips; Calcutta: BCA628A [Radio] ID = 2035884 1400x898
Select picture or schematic to display from thumbnails on the right and click for download.
For model BCA628A, Philips; Calcutta:
Quelle: ebay.de, #182295820026

Country:  India
Manufacturer / Brand:  Philips; Calcutta
Year: 1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: EF41 ECH42 EBF80 EAF42 EM34 EL41 AZ41
Main principle Superhet with RF-stage
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 90; 110; 125; 145; 200; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: BCA628A - Philips; Calcutta
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 550 x 350 x 250 mm / 21.7 x 13.8 x 9.8 inch
Notes

Philips India model BCA628A;
SW coverage: 11 - 17 m, 17 - 25 m, 22 - 33 m, 33 - 60 m, 60 - 180 m.

See also the similar AC/DC model BCA628U.

Model page created by Bernhard Nagel. See "Data change" for further contributors.
