BDK 743

BDK 743; Philips Radio A/S; K (ID = 472162) Radio

BDK 743; Philips Radio A/S; K (ID = 472163) Radio
BDK 743; Philips Radio A/S; K (ID = 423261) Radio BDK 743; Philips Radio A/S; K (ID = 423262) Radio

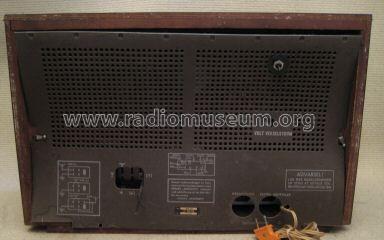

BDK 743; Philips Radio A/S; K (ID = 423263) Radio BDK 743; Philips Radio A/S; K (ID = 423264) Radio
BDK 743; Philips Radio A/S; K (ID = 423265) Radio
Use red slider bar for more.
BDK 743; Philips Radio A/S; K (ID = 423261) Radio
Philips Radio A/S; K: BDK 743 [Radio] ID = 423261 368x256
Select picture or schematic to display from thumbnails on the right and click for download.
For model BDK 743, Philips Radio A/S; København:
aus ebay, Verkäufer koschinski020574

Country:  Denmark
Manufacturer / Brand:  Philips Radio A/S; København
Year: 1954 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: EC92 EC92 EF85 ECH81 EM34 EF41 EABC80 EL84 EZ80
Main principle Superheterodyne (common); ZF/IF 452; 10.700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: BDK 743 - Philips Radio A/S; København
Material Wooden case
Shape Tablemodel with Push Buttons.
Notes Drehbare Ferritantenne; Chassis ähnlich wie BX633A. Dial lamps: 8024N-00; 8073D-00; 2x 8045D-00.
Source of data -- Collector info (Sammler)

Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
