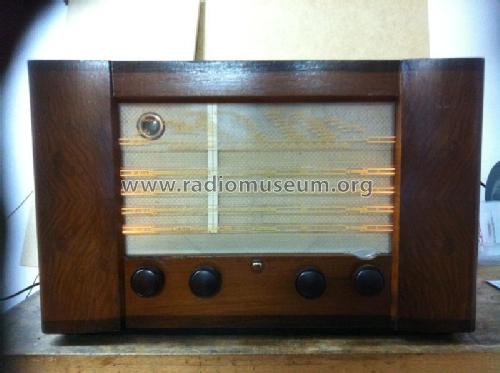

BE-492-A; Philips Ibérica, (ID = 1623523) Radio
Philips Ibérica,: BE-492-A [Radio] ID = 1623523 933x721
Select picture or schematic to display from thumbnails on the right and click for download.
For model BE-492-A, Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes; Madrid, Barcelona

Country:  Spain
Manufacturer / Brand:  Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes; Madrid, Barcelona
Year: 1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH42 EAF42 EAF42 EL41 EM4 AZ41
Main principle Super-Heterodyne (Super in general); ZF/IF 452 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: BE-492-A - Philips Ibérica, COPRESA,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 500 x 320 x 230 mm / 19.7 x 12.6 x 9.1 inch
Net weight (2.2 lb = 1 kg) 9.9 kg / 21 lb 12.9 oz (21.806 lb)
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
