BE-514-A

BE-514-A; Philips Ibérica, (ID = 232828) Radio

BE-514-A; Philips Ibérica, (ID = 232830) Radio

BE-514-A; Philips Ibérica, (ID = 232829) Radio
BE-514-A; Philips Ibérica, (ID = 1478285) Radio BE-514-A; Philips Ibérica, (ID = 1478287) Radio
BE-514-A; Philips Ibérica, (ID = 1478291) Radio BE-514-A; Philips Ibérica, (ID = 232827) Radio
BE-514-A; Philips Ibérica, (ID = 1478292) Radio BE-514-A; Philips Ibérica, (ID = 1623323) Radio

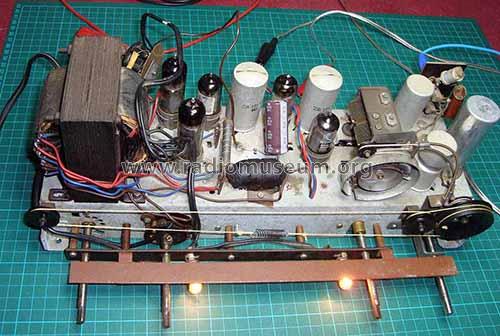

BE-514-A; Philips Ibérica, (ID = 1623324) Radio BE-514-A; Philips Ibérica, (ID = 1623325) Radio
BE-514-A; Philips Ibérica, (ID = 1623326) Radio BE-514-A; Philips Ibérica, (ID = 1623327) Radio
Use red slider bar for more.
BE-514-A; Philips Ibérica, (ID = 1478285) Radio
Philips Ibérica,: BE-514-A [Radio] ID = 1478285 700x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model BE-514-A, Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes; Madrid, Barcelona

Country:  Spain
Manufacturer / Brand:  Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes; Madrid, Barcelona
Year: 1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH42 EAF42 EBC41 EL41 EM4 AZ41
Main principle Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 90; 110; 125; 145; 200; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: BE-514-A - Philips Ibérica, COPRESA,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 480 x 340 x 210 mm / 18.9 x 13.4 x 8.3 inch
Notes
Price in first year of sale 3'473.25 ESP
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
