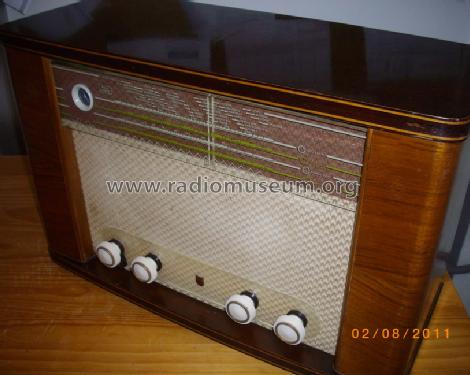

BE-531-A

BE-531-A; Philips Ibérica, (ID = 734954) Radio

BE-531-A; Philips Ibérica, (ID = 734955) Radio

BE-531-A; Philips Ibérica, (ID = 734956) Radio
BE-531-A; Philips Ibérica, (ID = 1034598) Radio BE-531-A; Philips Ibérica, (ID = 1034600) Radio
BE-531-A; Philips Ibérica, (ID = 1034599) Radio BE-531-A; Philips Ibérica, (ID = 114506) Radio
BE-531-A; Philips Ibérica, (ID = 411013) Radio BE-531-A; Philips Ibérica, (ID = 411014) Radio
BE-531-A; Philips Ibérica, (ID = 411015) Radio BE-531-A; Philips Ibérica, (ID = 1034597) Radio
BE-531-A; Philips Ibérica, (ID = 1034601) Radio BE-531-A; Philips Ibérica, (ID = 1193707) Radio
Use red slider bar for more.
BE-531-A; Philips Ibérica, (ID = 1034598) Radio
Philips Ibérica,: BE-531-A [Radio] ID = 1034598 815x667
Select picture or schematic to display from thumbnails on the right and click for download.
For model BE-531-A, Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes; Madrid, Barcelona

Country:  Spain
Manufacturer / Brand:  Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes; Madrid, Barcelona
Year: 1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH42 EAF42 EBC41 EL41 EM34 AZ41
Main principle Superheterodyne (common); ZF/IF 452 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 90, 110, 125, 150 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: BE-531-A - Philips Ibérica, COPRESA,
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 510 x 340 x 205 mm / 20.1 x 13.4 x 8.1 inch
Price in first year of sale 3'500.00 ESP
External source of data Ernst Erb
Source of data Radio Historia y Técnica, J.J.E.
Literature/Schematics (1) Anuncio La Vanguardia Española 31 Octubre 1953
