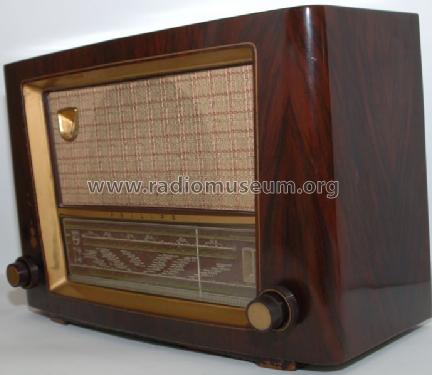

Philips Ibérica,: BE-552-A [Radio] ID = 269121 933x656
Select picture or schematic to display from thumbnails on the right and click for download.
For model BE-552-A, Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes; Madrid, Barcelona

Country:  Spain
Manufacturer / Brand:  Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes; Madrid, Barcelona
Year: 1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH81 EBF80 EBC41 EL84 EM80 EZ80
Main principle Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21.3 cm = 8.4 inch
Power out
from Radiomuseum.org Model: BE-552-A - Philips Ibérica, COPRESA,
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 480 x 325 x 225 mm / 18.9 x 12.8 x 8.9 inch
Notes Caja de bakelita simulando madera
The case is Bakelite, but with a wooden finish look
Net weight (2.2 lb = 1 kg) 8 kg / 17 lb 9.9 oz (17.621 lb)
Price in first year of sale 3'104.90 ESP
Literature/Schematics (1) -- Original-techn. papers. (Anuncio ABC 27-12-1955)

Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
