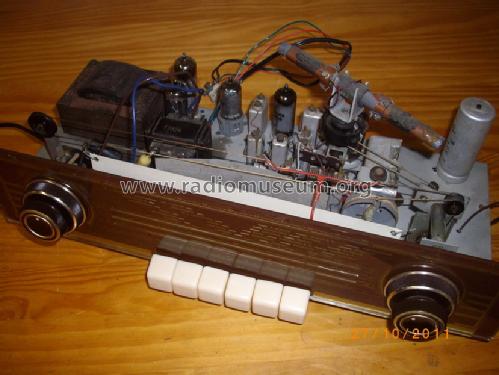

BE-652-A; Philips Ibérica, (ID = 1086539) Radio BE-652-A; Philips Ibérica, (ID = 1086540) Radio
BE-652-A; Philips Ibérica, (ID = 1086557) Radio BE-652-A; Philips Ibérica, (ID = 1339972) Radio
Use red slider bar for more.

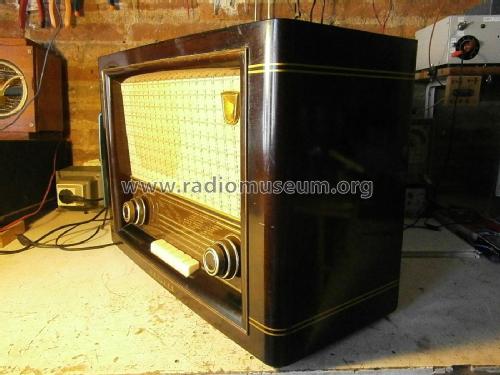

BE-652-A; Philips Ibérica, (ID = 327879) Radio
Philips Ibérica,: BE-652-A [Radio] ID = 327879 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model BE-652-A, Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes; Madrid, Barcelona

Country:  Spain
Manufacturer / Brand:  Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes; Madrid, Barcelona
Year: 1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH81 EBF80 EBC41 EL84 EM80 EZ80
Main principle Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: BE-652-A - Philips Ibérica, COPRESA,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 535 x 370 x 230 mm / 21.1 x 14.6 x 9.1 inch
Notes En algún momento de producción cambian FI a 470 kHz.
During production IF changed to 470 kHz.
Price in first year of sale 3'894.25 ESP
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
