BE-562-A

BE-562-A; Philips Ibérica, (ID = 1997393) Radio
BE-562-A; Philips Ibérica, (ID = 1112144) Radio BE-562-A; Philips Ibérica, (ID = 1112143) Radio
BE-562-A; Philips Ibérica, (ID = 1112147) Radio BE-562-A; Philips Ibérica, (ID = 1112149) Radio
Use red slider bar for more.

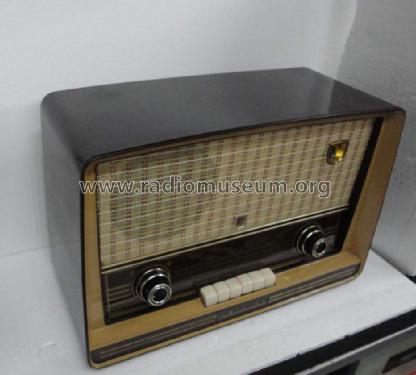

BE-562-A; Philips Ibérica, (ID = 1112144) Radio
Philips Ibérica,: BE-562-A [Radio] ID = 1112144 933x840
Select picture or schematic to display from thumbnails on the right and click for download.
For model BE-562-A, Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes; Madrid, Barcelona

Country:  Spain
Manufacturer / Brand:  Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes; Madrid, Barcelona
Year: 1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH81 EBF80 EBC90 EL84 EM80 EZ80
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch
Power out 4.5 W (unknown quality)
from Radiomuseum.org Model: BE-562-A - Philips Ibérica, COPRESA,
Material Bakelite case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 500 x 340 x 210 mm / 19.7 x 13.4 x 8.3 inch
Net weight (2.2 lb = 1 kg) 9.130 kg / 20 lb 1.8 oz (20.11 lb)
Price in first year of sale 3'263.00 ESP
Literature/Schematics (1) Anuncio La Vanguardia 7 Octubre 1956

Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
