For model BE-621-A, Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes; Madrid, Barcelona

Country:  Spain
Manufacturer / Brand:  Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes; Madrid, Barcelona
Year: 1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH42 EAF42 EAF42 EL41 EM34 AZ41
Main principle Superheterodyne (common); ZF/IF 452 kHz
Wave bands Broadcast plus more than 2 Short Wave bands.
Details

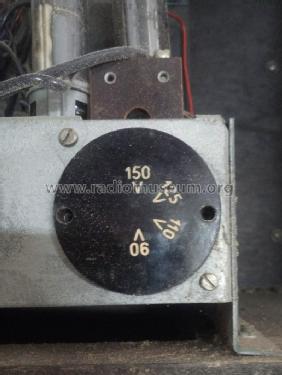

Power type and voltage Alternating Current supply (AC) / 90; 110; 125; 145; 200; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: BE-621-A - Philips Ibérica, COPRESA,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 625 x 380 x 245 mm / 24.6 x 15 x 9.6 inch
Notes

5 gamas de ondas:

OM (160-550m), OC1 (32-50,5m), OC2 (21-32m), OC3 (17-26m), OC4 (13,5-20m).

Este chasis se utiliza en el FE-823-A.

Price in first year of sale 4'695.95 ESP

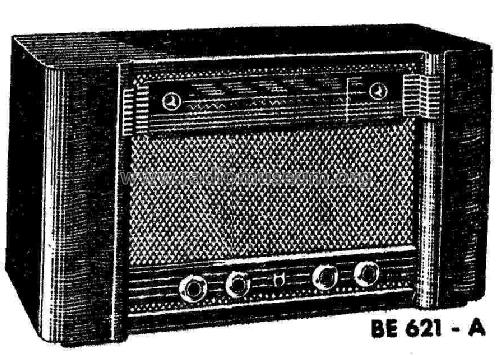

Literature/Schematics (1) Anuncio La Vanguardia Española 01/10/1952
Literature/Schematics (4) -- Schematic

Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
