Belcanto BA691X

Belcanto BA691X; Philips - Österreich (ID = 59101) Radio

Belcanto BA691X; Philips - Österreich (ID = 59106) Radio
Belcanto BA691X; Philips - Österreich (ID = 56512) Radio
Use red slider bar for more.

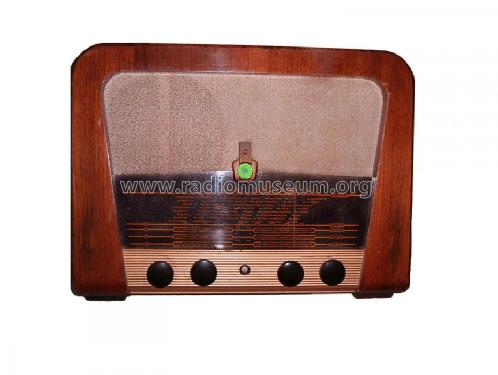

Belcanto BA691X; Philips - Österreich (ID = 56512) Radio
Philips - Österreich: Belcanto BA691X [Radio] ID = 56512 930x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Belcanto BA691X, Philips - Österreich

Country:  Austria
Manufacturer / Brand:  Philips - Österreich
Year: 1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECH42 EAF42 EAF42 EL41 EM34 EL41 AZ1
Main principle Super-Heterodyne (Super in general); ZF/IF 452 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 200; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Belcanto BA691X - Philips - Österreich
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 525 x 400 x 240 mm / 20.7 x 15.7 x 9.4 inch
Notes

3 Kurzwellenbereiche.

Parallelgerät zu Hornyphon Traviata W669X

Wird mit Wechselrichter 7897c am Gleichstromnetz betrieben.

Price in first year of sale 1'900.00 ATS
External source of data eigene Sammlung
Source of data Radiokatalog Band 2, Ernst Erb

Model page created by Johannes Bernhauser. See "Data change" for further contributors.
