BF491A -07

BF491A -07; Philips France; (ID = 946771) Radio BF491A -07; Philips France; (ID = 946772) Radio
BF491A -07; Philips France; (ID = 946773) Radio BF491A -07; Philips France; (ID = 946774) Radio
BF491A -07; Philips France; (ID = 946775) Radio BF491A -07; Philips France; (ID = 946776) Radio
BF491A -07; Philips France; (ID = 2213145) Radio BF491A -07; Philips France; (ID = 2213146) Radio
BF491A -07; Philips France; (ID = 2213147) Radio
Use red slider bar for more.
BF491A -07; Philips France; (ID = 946771) Radio

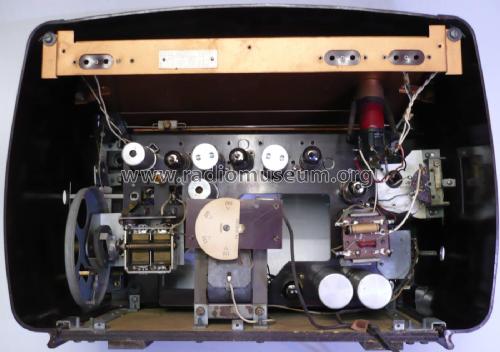

Philips France;: BF491A -07 [Radio] ID = 946771 900x734
Select picture or schematic to display from thumbnails on the right and click for download.
For model BF491A -07, Philips France; Paris

Country:  France
Manufacturer / Brand:  Philips France; Paris
Year: 1950 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH42 EAF41 EAF41 EL41 EM4 AZ41
Main principle Super-Heterodyne (Super in general)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 130; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out 4 W (unknown quality)
from Radiomuseum.org Model: BF491A -07 - Philips France; Paris
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 460 x 280 x 320 mm / 18.1 x 11 x 12.6 inch
Notes

Pour la documentation technique voir le modèle de base BF491A.

Le jeu de lampes n'est pas certain : toutes les autres exécutions de l'appareil BF491A portent la lampe ECH41.

Net weight (2.2 lb = 1 kg) 8.4 kg / 18 lb 8 oz (18.502 lb)
Collectors' prices

Model page created by Karl-Heinz Schmehr. See "Data change" for further contributors.



All listed radios etc. from Philips France; Paris
Here you find 544 models, 482 with images and 297 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
