BF633 AM-FM

BF633 AM-FM; Philips France; (ID = 131026) Radio BF633 AM-FM; Philips France; (ID = 131027) Radio
BF633 AM-FM; Philips France; (ID = 131028) Radio BF633 AM-FM; Philips France; (ID = 491897) Radio
BF633 AM-FM; Philips France; (ID = 491898) Radio BF633 AM-FM; Philips France; (ID = 491899) Radio
BF633 AM-FM; Philips France; (ID = 491900) Radio BF633 AM-FM; Philips France; (ID = 491901) Radio
BF633 AM-FM; Philips France; (ID = 1085945) Radio BF633 AM-FM; Philips France; (ID = 1085946) Radio
Use red slider bar for more.
BF633 AM-FM; Philips France; (ID = 131026) Radio
Philips France;: BF633 AM-FM [Radio] ID = 131026 640x480
Select picture or schematic to display from thumbnails on the right and click for download.

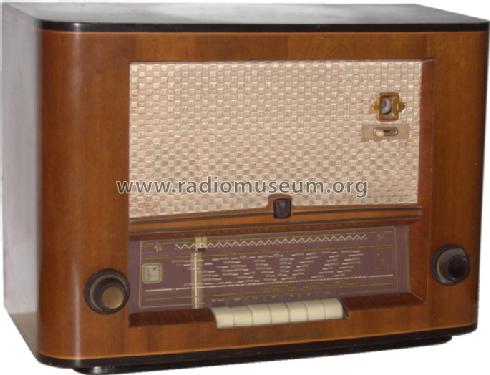

For model BF633 AM-FM, Philips France; Paris:
eigene Ebay-auktion

Country:  France
Manufacturer / Brand:  Philips France; Paris
Year: 1955 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: EC92 EC92 EF85 ECH81 EM34 EF41 EABC80 EL84 EZ80
Main principle Super-Heterodyne (Super in general); ZF/IF 455/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details

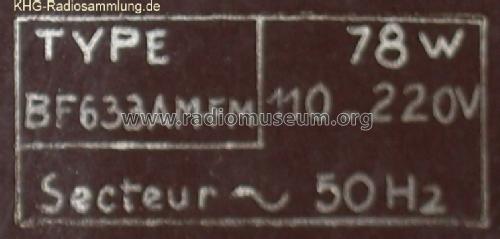

Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: BF633 AM-FM - Philips France; Paris
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 590 x 400 x 245 mm / 23.2 x 15.7 x 9.6 inch
Notes

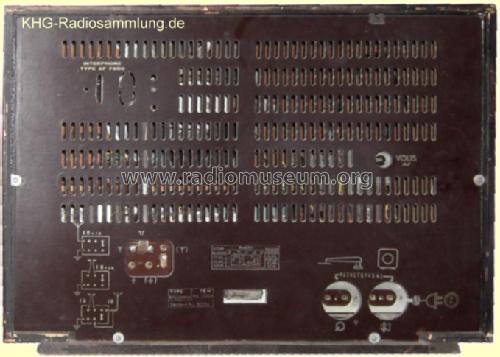

Zum Einbau des Interfoon / Interphone / Heim-Rufgerät AF7800 vorgesehen.

Sehr wahrscheinlich identisch mit Philips BF633A.

Net weight (2.2 lb = 1 kg) 7 kg / 15 lb 6.7 oz (15.419 lb)
Collectors' prices
Source of data -- Collector info (Sammler)

Model page created by Michael John. See "Data change" for further contributors.
