BI594/A

BI594/A; Philips Italy; (ID = 257166) Radio

BI594/A; Philips Italy; (ID = 257180) Radio
BI594/A; Philips Italy; (ID = 1403311) Radio BI594/A; Philips Italy; (ID = 603148) Radio
BI594/A; Philips Italy; (ID = 603149) Radio BI594/A; Philips Italy; (ID = 1267218) Radio
BI594/A; Philips Italy; (ID = 1403313) Radio BI594/A; Philips Italy; (ID = 1749057) Radio
BI594/A; Philips Italy; (ID = 1749277) Radio
Use red slider bar for more.
BI594/A; Philips Italy; (ID = 1403311) Radio
Philips Italy;: BI594/A [Radio] ID = 1403311 756x561
Select picture or schematic to display from thumbnails on the right and click for download.
For model BI594/A, Philips Italy; Milano (MI)

Country:  Italy
Manufacturer / Brand:  Philips Italy; Milano (MI)
Year: 1951/1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH42 EF41 EBC41 EL41 EM4 AZ41
Main principle Superheterodyne (common); ZF/IF 468 kHz
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: BI594/A - Philips Italy; Milano MI
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 500 x 350 x 245 mm / 19.7 x 13.8 x 9.6 inch
Notes Gamme d'onda: medie e 4 corte.
Wave bands: BC, 4x SW.
Price in first year of sale 57'000.00 ITL
Source of data Guida Pratica Antique Radio II (2000)

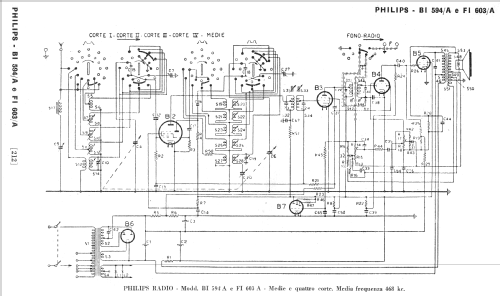

Literature/Schematics (1) Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 212-213)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
