BN582A

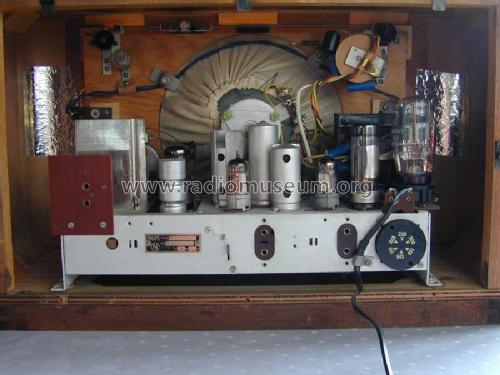

BN582A; Philips Norway Norsk (ID = 245714) Radio BN582A; Philips Norway Norsk (ID = 622262) Radio

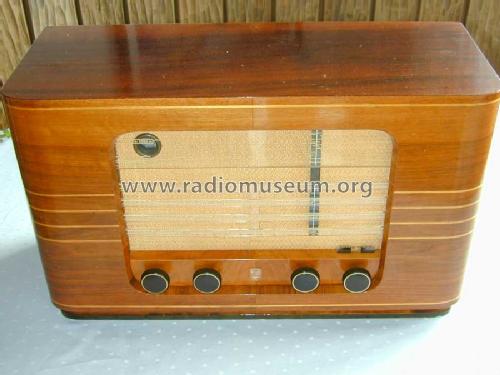

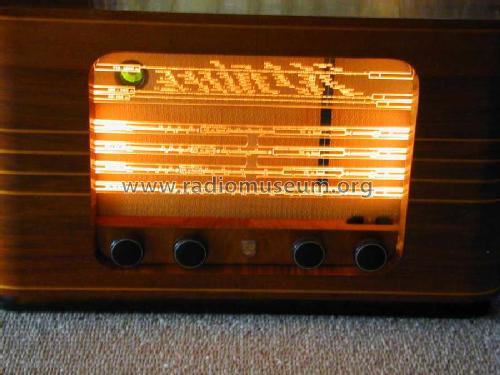

BN582A; Philips Norway Norsk (ID = 622264) Radio BN582A; Philips Norway Norsk (ID = 622260) Radio

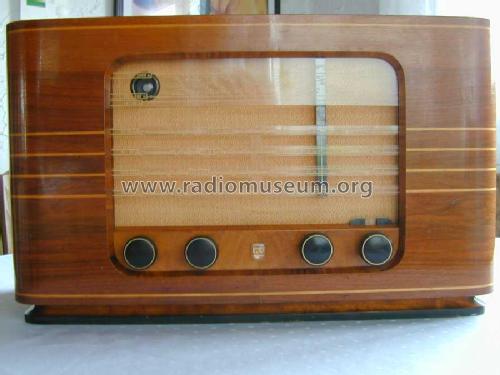

BN582A; Philips Norway Norsk (ID = 622261) Radio BN582A; Philips Norway Norsk (ID = 622263) Radio
Use red slider bar for more.

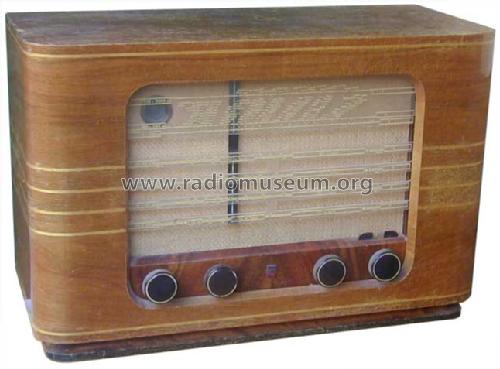

BN582A; Philips Norway Norsk (ID = 245714) Radio
Philips Norway Norsk: BN582A [Radio] ID = 245714 646x477
Select picture or schematic to display from thumbnails on the right and click for download.
For model BN582A, Philips Norway (Norsk A/S Philips - A/S Radio Industri); Oslo

Country:  Norway
Manufacturer / Brand:  Philips Norway (Norsk A/S Philips - A/S Radio Industri); Oslo
Year: 1949 Category: Broadcast Receiver - or past WW2 Tuner

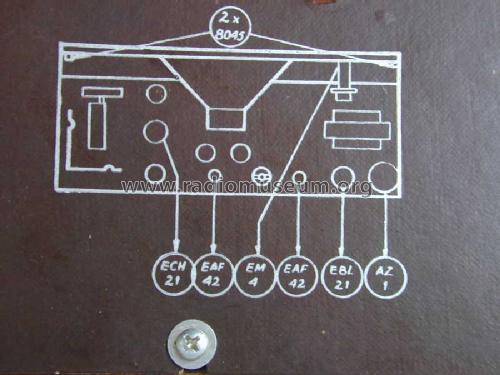

Valves / Tubes 6: ECH21 EAF42 EAF42 EBL21 EM4 AZ1
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 19 cm = 7.5 inch
Power out
from Radiomuseum.org Model: BN582A - Philips Norway Norsk A/S
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 500 x 330 x 320 mm / 19.7 x 13 x 12.6 inch
Price in first year of sale 606.00 NKr
Source of data - - Data from my own collection

Model page created by Ernst Rykkje. See "Data change" for further contributors.



All listed radios etc. from Philips Norway (Norsk A/S Philips - A/S Radio Industri); Oslo
Here you find 55 models, 48 with images and 13 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
