• Country
• Brazil

• Manufacturer / Brand
• Philips do Brasil S.A.

• Year
• 1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 107575

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH21 EAF42 EBC41 EL41 AZ41 EM34

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 90-220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm

• Power out
• 4 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org

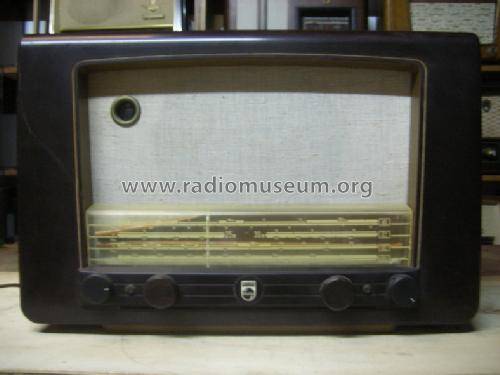

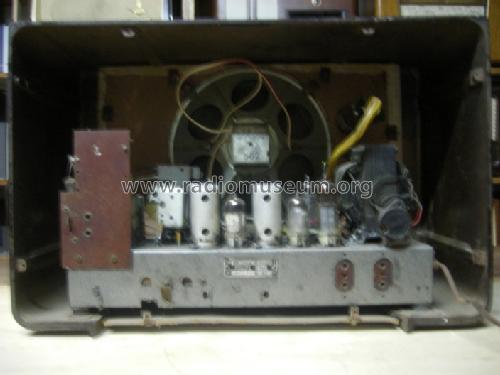

• Model: BR516A - Philips do Brasil S.A.

• Shape
• Tablemodel, low profile (big size).

• Notes
• MW: 517-1622 kHz, SW1: 2,21-7,35 MHz, SW2: 9,32-12,05 MHz, SW3: 15,05-26,5 MHz.

• Literature/Schematics (1)
• Esquemário Philips - Editora Industrial Teco Ltda

• Author
• Model page created by Meyer Rochwerger. See "Data change" for further contributors.
