• Year
  • 1952
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 139638

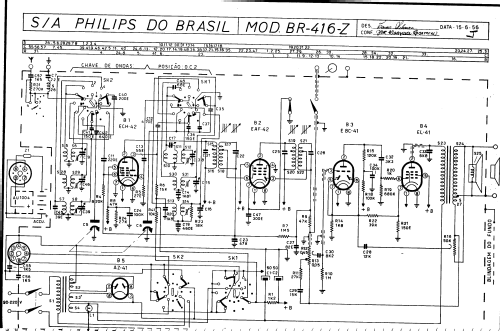

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast plus more than 2 Short Wave bands.
  • Power type and voltage
  • Line / Storage batteries (perhaps also batteries) / 90-220 / 6 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
  • Material
  • Bakelite case
  • from Radiomuseum.org
  • Model: BR-416-Z - Philips do Brasil S.A.
  • Shape
  • Tablemodel, with any shape - general.
  • Notes
  • This set has a "optional" vibrator unit model AU1004 for use with a 6V car battery.
  • Source of data
  • -- Original-techn. papers.
  • Author
  • Model page created by Meyer Rochwerger. See "Data change" for further contributors.
