BS301A

BS301A; Philips, Svenska AB, (ID = 902644) Radio BS301A; Philips, Svenska AB, (ID = 902645) Radio
BS301A; Philips, Svenska AB, (ID = 902641) Radio BS301A; Philips, Svenska AB, (ID = 902642) Radio
BS301A; Philips, Svenska AB, (ID = 902643) Radio BS301A; Philips, Svenska AB, (ID = 902646) Radio
BS301A; Philips, Svenska AB, (ID = 902647) Radio BS301A; Philips, Svenska AB, (ID = 2321844) Radio
BS301A; Philips, Svenska AB, (ID = 2321845) Radio BS301A; Philips, Svenska AB, (ID = 2321846) Radio
Use red slider bar for more.
BS301A; Philips, Svenska AB, (ID = 902644) Radio
Philips, Svenska AB,: BS301A [Radio] ID = 902644 933x715
Select picture or schematic to display from thumbnails on the right and click for download.

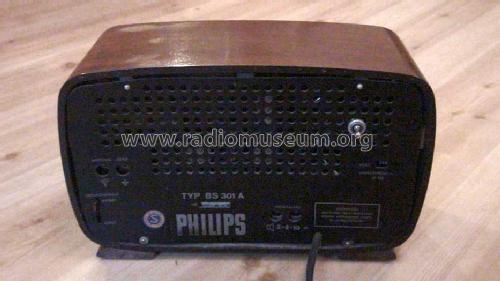

For model BS301A, Philips, Svenska AB, Stockholm

Country:  Sweden
Manufacturer / Brand:  Philips, Svenska AB, Stockholm
Year: 1950 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH42 EF41 EAF42 EL41 AZ41
Main principle Super-Heterodyne (Super in general); ZF/IF 460 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 100; 110; 130; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: BS301A - Philips, Svenska AB, Stockholm
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 350 x 220 x 150 mm / 13.8 x 8.7 x 5.9 inch
Notes This model is made for the Swedish market.
Collectors' prices
Source of data - - Data from my own collection

Model page created by Robert Kooijman. See "Data change" for further contributors.
