BS371A

BS371A; Philips, Svenska AB, (ID = 760229) Radio

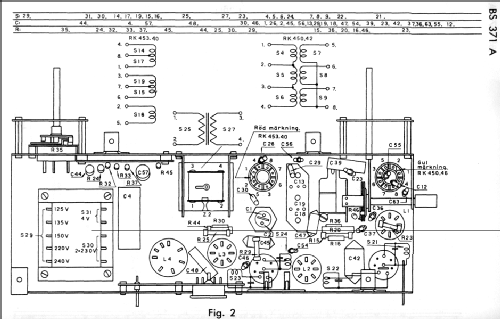

BS371A; Philips, Svenska AB, (ID = 760230) Radio

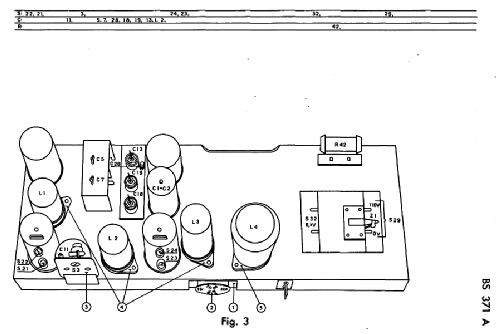

BS371A; Philips, Svenska AB, (ID = 760231) Radio
BS371A; Philips, Svenska AB, (ID = 760228) Radio
Use red slider bar for more.
BS371A; Philips, Svenska AB, (ID = 760228) Radio
Philips, Svenska AB,: BS371A [Radio] ID = 760228 500x419
Select picture or schematic to display from thumbnails on the right and click for download.
For model BS371A, Philips, Svenska AB, Stockholm:
Philips service document

Country:  Sweden
Manufacturer / Brand:  Philips, Svenska AB, Stockholm
Year: 1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH21 ECH21 EBL21 AZ1
Main principle Super-Heterodyne (Super in general); ZF/IF 452 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 125-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: BS371A - Philips, Svenska AB, Stockholm
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 430 x 260 x 200 mm / 16.9 x 10.2 x 7.9 inch
Net weight (2.2 lb = 1 kg) 8 kg / 17 lb 9.9 oz (17.621 lb)
Source of data - - Manufacturers Literature
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Lennart Nilsson. See "Data change" for further contributors.
