BS521A
Use red slider bar for more.

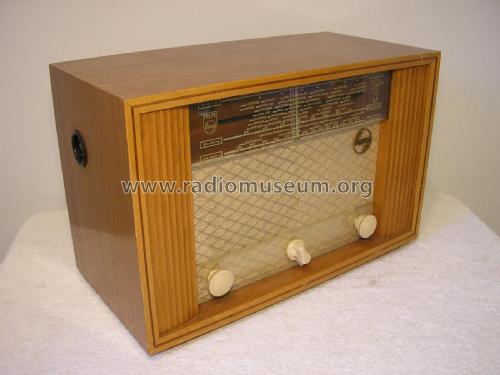

Philips, Svenska AB,: BS521A [Radio] ID = 804359 566x400
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1952 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 6: ECH42 EAF42 EF41 EL41 EM34 AZ1 |
|---|
| Main principle | Super-Heterodyne (Super in general); ZF/IF 460 kHz |
|---|---|
| Tuned circuits | 6 AM circuit(s) |
| Wave bands | Broadcast, Long Wave and Short Wave. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110; 125; 135; 150; 220; 240 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch |
| Power out | 2 W (unknown quality) |
| from Radiomuseum.org | Model: BS521A - Philips, Svenska AB, Stockholm |
| Material | Wooden case |
| Shape | Tablemodel, low profile (big size). |
| Dimensions (WHD) | 420 x 300 x 230 mm / 16.5 x 11.8 x 9.1 inch |
| Notes | Philips Svenska BS521A; |
| Net weight (2.2 lb = 1 kg) | 8 kg / 17 lb 9.9 oz (17.621 lb) |
| Source of data | - - Data from my own collection |
Model page created by Guijiang LIU. See "Data change" for further contributors.
