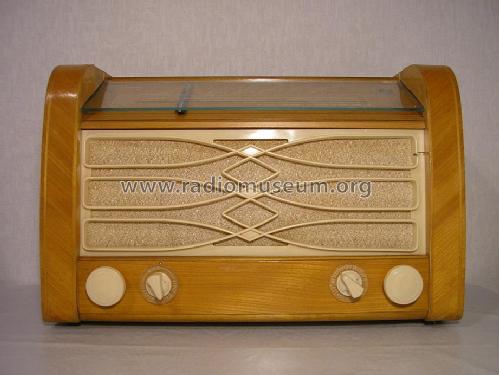

BS595A; Philips, Svenska AB, (ID = 1168154) Radio
Philips, Svenska AB,: BS595A [Radio] ID = 1168154 922x692
Select picture or schematic to display from thumbnails on the right and click for download.
For model BS595A, Philips, Svenska AB, Stockholm

Country:  Sweden
Manufacturer / Brand:  Philips, Svenska AB, Stockholm
Year: 1949 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH21 EAF42 EF40 EL41 EM34 AZ1
Main principle Super-Heterodyne (Super in general); ZF/IF 460 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 135; 150; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: BS595A - Philips, Svenska AB, Stockholm
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 532 x 350 x 247 mm / 20.9 x 13.8 x 9.7 inch
Notes Dial lamps: 2x 8095D 6,3V/0,32A
Wave bands: 13,4-20,1m
20-26m
24,8-32,4m
39,5-51,5m
56-185m
185-590m
700-2000m

Model page created by Timo Rantasaari. See "Data change" for further contributors.
