520a

520a; Philips Finland - (ID = 131722) Radio 520a; Philips Finland - (ID = 131726) Radio
520a; Philips Finland - (ID = 131724) Radio 520a; Philips Finland - (ID = 131728) Radio
520a; Philips Finland - (ID = 131727) Radio 520a; Philips Finland - (ID = 1956909) Radio
520a; Philips Finland - (ID = 1956910) Radio 520a; Philips Finland - (ID = 1956911) Radio
520a; Philips Finland - (ID = 1956912) Radio 520a; Philips Finland - (ID = 1956913) Radio
Use red slider bar for more.

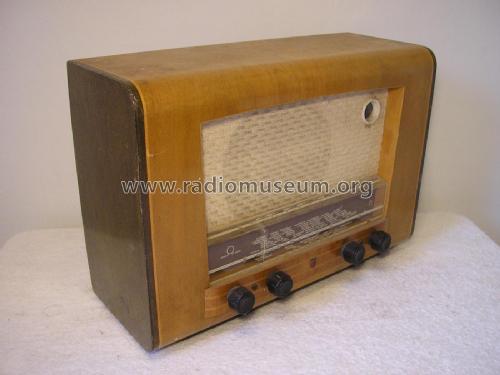

520a; Philips Finland - (ID = 131722) Radio
Philips Finland -: 520a [Radio] ID = 131722 560x420
Select picture or schematic to display from thumbnails on the right and click for download.
For model 520a, Philips Finland - see also Fenno and TeRate

Country:  Finland
Manufacturer / Brand:  Philips Finland - see also Fenno and TeRate
Year: 1952 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH42 EAF42 EBC41 EL41 EM34 AZ41
Main principle Superheterodyne (common)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110-245 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: 520a - Philips Finland - see also
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 480 x 335 x 200 mm / 18.9 x 13.2 x 7.9 inch
Notes Marketing Oy Stockman Ab Helsinki. Wooden housing by Keravan Puusepäntehdas.
Net weight (2.2 lb = 1 kg) 7.8 kg / 17 lb 2.9 oz (17.181 lb)

Model page created by Jari Aalto. See "Data change" for further contributors.



All listed radios etc. from Philips Finland - see also Fenno and TeRate
Here you find 159 models, 149 with images and 38 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
