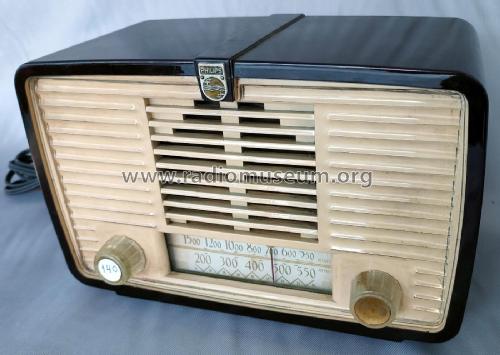

BX115U (-00) speaker grille with bar
Philips; Eindhoven (tubes international!); Miniwatt
- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1952 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 225923
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 127; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11 cm = 4.3 inch
- Material
- Bakelite case
- from Radiomuseum.org
- Model: BX115U [speaker grille with bar] - Philips; Eindhoven tubes
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 260 x 165 x 125 mm / 10.2 x 6.5 x 4.9 inch
- Notes
-
AM radio for external antenna, BC reception only. This variant of the BX115U has a reinforced speaker grille with a vertical bar and is similar to BX115U /19.
Reception range: 517 - 1622 kHz
Loudspeaker: 9742X (5Ω)
Dial lamp: 8009D 07 (E10, 6.3 V, 250 mA?)There is no switch present for changing the mains voltage. The conversion from 220 V to 127 V is done by shorting the resistors R11 and R12 with wires.
For schematics, see model BX115U -00. Another variant, model BX115U -01 works on 127 V AC/DC only.
Suffix -00 only shows on technical documentation, not on type plates.
- Net weight (2.2 lb = 1 kg)
- 2.2 kg / 4 lb 13.5 oz (4.846 lb)
