• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1948/1949

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 296351

• Number of Tubes
• 4

• Valves / Tubes

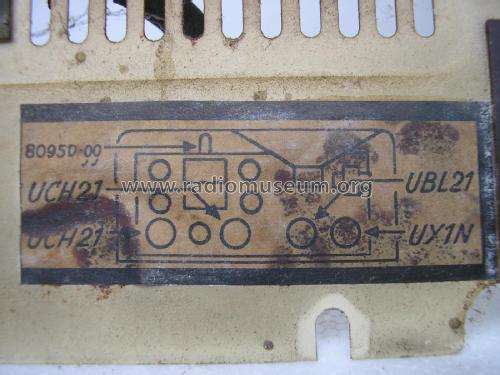

• UCH21 UCH21 UBL21 UY1N

• Main principle
• Superheterodyne (common); Export model

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 125; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11 cm = 4.3 inch

• Material
• Bakelite case

• from Radiomuseum.org
• Model: BX281U -47 - Philips; Eindhoven tubes

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 262 x 189 x 155 mm / 10.3 x 7.4 x 6.1 inch

• Notes

• Philips BX281U -47 is an export model for Denmark, Norway and other Scandinavian countries.

  See also base model BX281U (-00).

• Author
• Model page created by Timo Rantasaari. See "Data change" for further contributors.

• Other Models

• Here you find 5233 models, 4365 with images and 3446 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Philips; Eindhoven (tubes international!); Miniwatt
