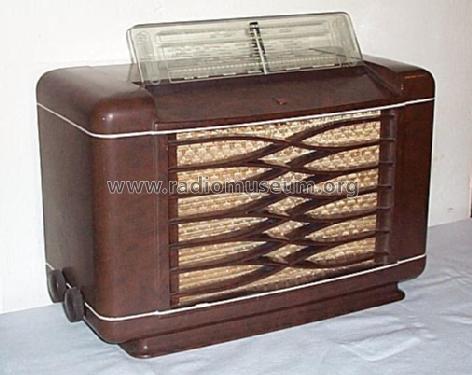

BX462A; Philips; Eindhoven (ID = 116502) Radio BX462A; Philips; Eindhoven (ID = 139719) Radio
BX462A; Philips; Eindhoven (ID = 230276) Radio BX462A; Philips; Eindhoven (ID = 428102) Radio
BX462A; Philips; Eindhoven (ID = 448570) Radio BX462A; Philips; Eindhoven (ID = 601327) Radio
Use red slider bar for more.

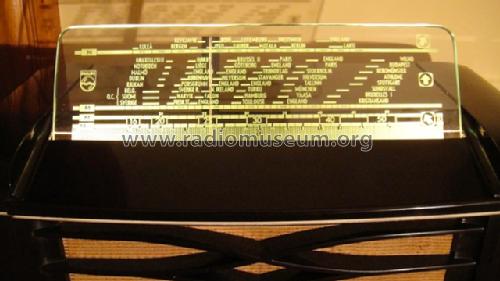

BX462A; Philips; Eindhoven (ID = 1784359) Radio
Philips; Eindhoven: BX462A [Radio] ID = 1784359 933x785
Select picture or schematic to display from thumbnails on the right and click for download.
For model BX462A, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1946/1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH21 ECH21 EBL21 AZ1
Main principle Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 19 cm = 7.5 inch
Power out 3 W (unknown quality)
from Radiomuseum.org Model: BX462A - Philips; Eindhoven tubes
Material Bakelite case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 460 x 280 x 200 mm / 18.1 x 11 x 7.9 inch
Notes
AM radio for external antenna:
  • LW: 150 - 424 kHz.
  • BC: 536 - 1765 kHz.
  • SW: 5,8 - 18,5 MHz.
Loudspeaker: 9636-05 (5Ω).
Dial lamp: 8045D (E10, 6.3V/320mA).

Net weight (2.2 lb = 1 kg) 8 kg / 17 lb 9.9 oz (17.621 lb)
Price in first year of sale 245.00 Hfl
Source of data Technisch- Commercieel - Radio Vademecum Staleman
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Iven Müller. See "Data change" for further contributors.
