BX533A /50

BX533A /50; Philips; Eindhoven (ID = 30261) Radio BX533A /50; Philips; Eindhoven (ID = 115830) Radio
BX533A /50; Philips; Eindhoven (ID = 472368) Radio BX533A /50; Philips; Eindhoven (ID = 472369) Radio
BX533A /50; Philips; Eindhoven (ID = 1779858) Radio
Use red slider bar for more.

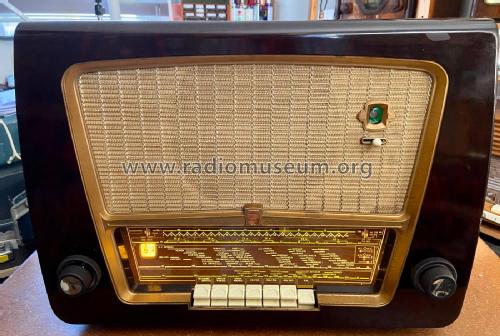

BX533A /50; Philips; Eindhoven (ID = 30261) Radio
Philips; Eindhoven: BX533A /50 [Radio] ID = 30261 933x618
Select picture or schematic to display from thumbnails on the right and click for download.
For model BX533A /50, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1953 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: EC92 EC92 EF85 ECH81 EM34 EF41 EABC80 EL84 EZ80
Main principle Superheterodyne (common); 2 AF stage(s)
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out 5.5 W (unknown quality)
from Radiomuseum.org Model: BX533A /50 - Philips; Eindhoven tubes
Material Bakelite case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 500 x 380 x 210 mm / 19.7 x 15 x 8.3 inch
Price in first year of sale 310.00 Hfl
Collectors' prices
External source of data Karel van Dorslaer
Literature/Schematics (4) -- Schematic
