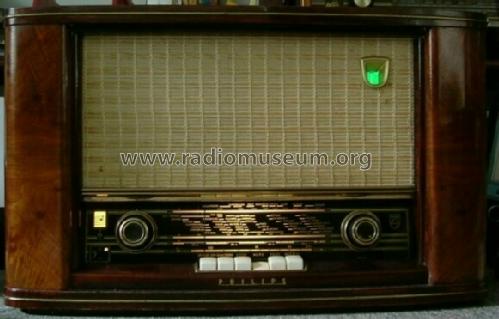

Philips; Eindhoven: BX543A /02 [Radio] ID = 501475 744x504
Select picture or schematic to display from thumbnails on the right and click for download.
For model BX543A /02, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1954/1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECC85 ECH81 EBF80 EF85 EM80 EABC80 EL84 EZ80
Main principle Superheterodyne (common); ZF/IF 452/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: BX543A /02 - Philips; Eindhoven tubes
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 627 x 384 x 226 mm / 24.7 x 15.1 x 8.9 inch
Notes

Wave bands:

  • LW: 1154 - 2000 m (260 - 150 KHz)
  • MW: 186 - 578 m (1620 - 519 KHz)
  • SW: 24,4 - 51,7 m (12,3 - 5,8 MHz)
  • FM: 3 - 3,43 m (100 - 87,5 MHz)

Speaker: 9754M (7 Ohm)

Source of data -- Original-techn. papers.

Model page created by Iven Müller. See "Data change" for further contributors.
