BX707AV

BX707AV; Philips; Eindhoven (ID = 752091) Radio BX707AV; Philips; Eindhoven (ID = 752092) Radio
BX707AV; Philips; Eindhoven (ID = 752095) Radio BX707AV; Philips; Eindhoven (ID = 752097) Radio
BX707AV; Philips; Eindhoven (ID = 752228) Radio BX707AV; Philips; Eindhoven (ID = 752229) Radio
BX707AV; Philips; Eindhoven (ID = 752230) Radio
Use red slider bar for more.
BX707AV; Philips; Eindhoven (ID = 752091) Radio
Philips; Eindhoven: BX707AV [Radio] ID = 752091 933x608
Select picture or schematic to display from thumbnails on the right and click for download.
For model BX707AV, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1950 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: EF22 ECH21 EAF42 EAF42 EM34 EAF42 EAF42 EL42 EL42 AZ41
schematic requested
Main principle Superhet with RF-stage; ZF/IF 452 kHz; Special type of reception - please describe.
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Line / Storage batteries (perhaps also batteries) / 90; 110; 125; 145; 200; 220 / DC 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
Power out 4 W (unknown quality)
from Radiomuseum.org Model: BX707AV - Philips; Eindhoven tubes
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 610 x 390 x 290 mm / 24 x 15.4 x 11.4 inch
Notes

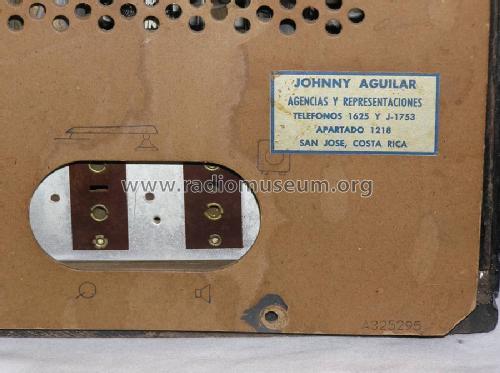

The Philips metal ID plate on the rear chassis wall identifies the receiver as BX707AV.
This radio for tropic areas has the built-in vibrator power supply module for +B and functioning vibrator - the chassis is essentially 3 sections. The receiver even has original "vibrator puller".
SW1: 10 - 14m
SW2: 13 - 20 m
SW3: 20 - 35 m
SW4: 32 - 51 m
SW5: 50 - 155 m
MW: 170 - 560 m.

Net weight (2.2 lb = 1 kg) 14.8 kg / 32 lb 9.6 oz (32.599 lb)

Model page created by Robert Sarbell. See "Data change" for further contributors.
