• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1954/1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 19694

• • Brand: Deutsche Philips-Ges.

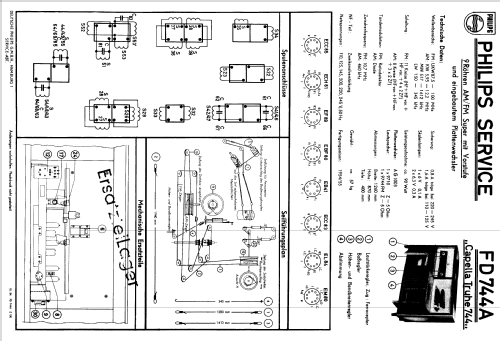

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• ECC85 ECH81 EF89 EBF80 EM80 EF41 ECC83 EL84 EL84

• Main principle
• Superheterodyne (common); ZF/IF 468/10700 kHz

• Tuned circuits
• 8 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Capella-Truhe 744 FD744A - Philips Radios - Deutschland

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1260 x 870 x 400 mm / 49.6 x 34.3 x 15.7 inch

• Notes
• Rundfunk-Chassis = Capella 643;
  Phono-Chassis = AG1011.

• Net weight (2.2 lb = 1 kg)
• 57 kg / 125 lb 8.8 oz (125.551 lb)

• Price in first year of sale
• 985.00 DM

• External source of data
• Erb

• Source of data
• Rundfunk- und Fernseh-Katalog 1954/55
