Capella-Truhe 853/4E/3D FD853A; Philips Radios - (ID = 220722) Radio
Philips Radios -: Capella-Truhe 853/4E/3D FD853A [Radio] ID = 220722 353x332

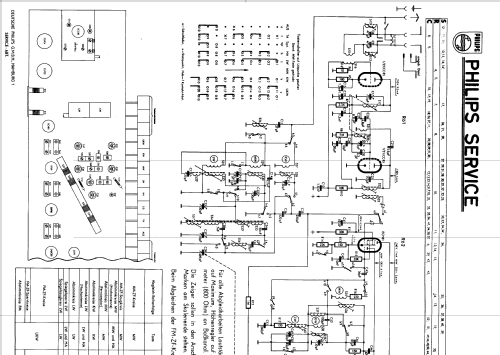

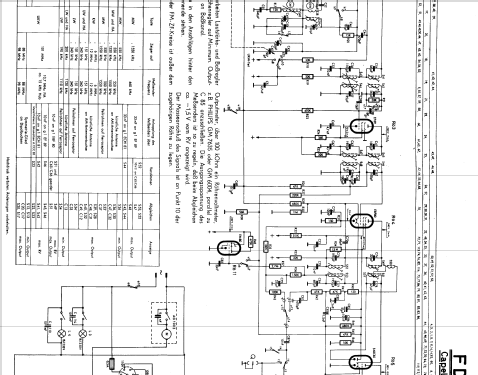

Select picture or schematic to display from thumbnails on the right and click for download.
For model Capella-Truhe 853/4E/3D FD853A, Philips Radios - Deutschland

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1955/1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 11: ECC85 ECH81 EF89 EBF80 EM80 EABC80 EC92 EL84 UL84 EL84 UL84
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 8 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 220 Volt
Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: Capella-Truhe 853/4E/3D FD853A - Philips Radios - Deutschland
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 1260 x 870 x 418 mm / 49.6 x 34.3 x 16.5 inch
Notes Rundfunk-Chassis = 753;
Phono-Chassis = AG1003. Skalenlampen Philips 7996D (7V,0,3A)
Net weight (2.2 lb = 1 kg) 54 kg / 118 lb 15.1 oz (118.943 lb)
Price in first year of sale 1'098.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1955/56
Mentioned in -- Original-techn. papers. (Philips Service-Anleitung)
